Thick Film Heating Technology Application In Steam Field
Time:2022-03-07 13:05:26    Click:395

With the improvement of people's living standards and the continuous pursuit of the quality life, various products in the field of household appliances are designed and brought into consumer market. Garment steamer , whether handheld or stand type has almost become a necessary product for the family. Steam mop, as a new product, is also increasingly recognized and pursuit by consumers. Especially in the COVID-19 era worldwide, from the perspective of health care, more and more consumers also choose a high-temperature steam mop to clean the house thoroughly.

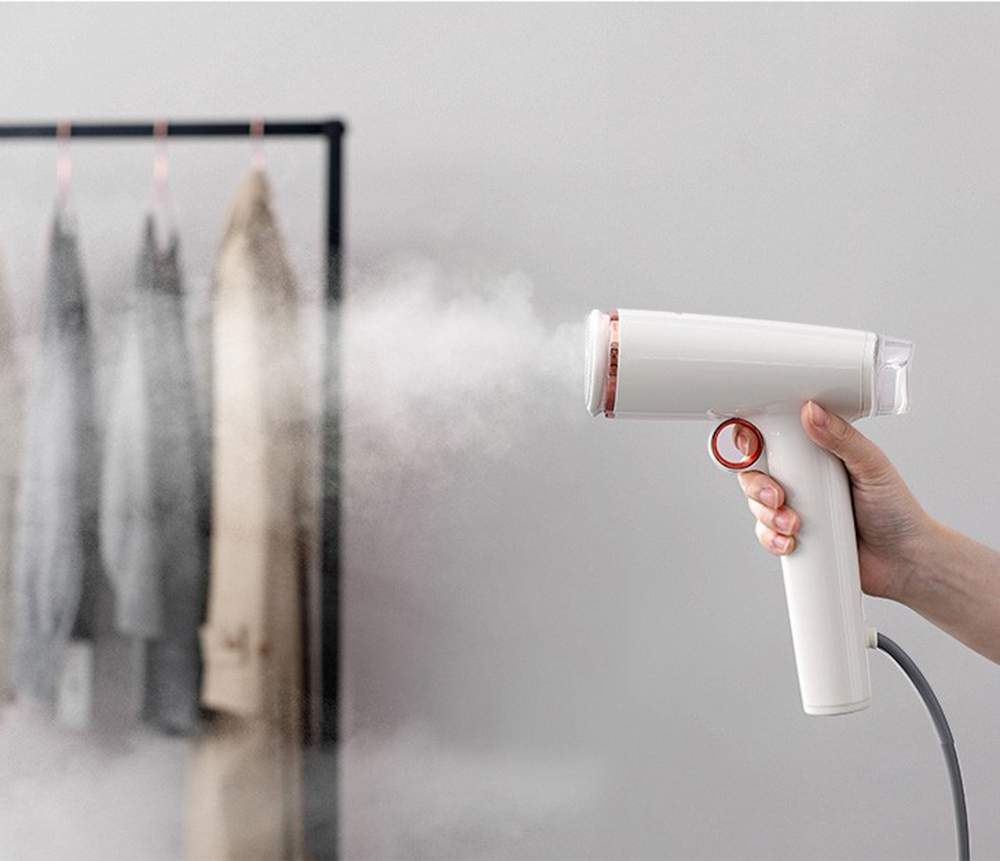

Hand held ironing machine

Although the application of these two products is different, the heating part of the core components is very similar. Heater is the "heart" of hanging ironing machine and steam mop. According to the different materials of heating equipment, there are aluminum alloy heater, copper heater, copper plastic heater, zinc alloy heater and so on. The advantages of copper plastic heater and zinc alloy heater are low cost and cheap price. Weakness is short service life, slow heat conduction, uneven steam. The advantages of aluminum alloy heater: is no cracks and integrally-formed, small thermal efficiency loss, good energy storage effect, fast thermal conductivity, uniform steam, simple process, low production cost. But the surface is easy to scale, the service life is relatively short. The advantages of copper heater is fast heating, large and uniform fog, long service life more than 8 years; Surface is not easy to scale, no need regular cleaning; Disadvantages are complex processing technology, high cost, high price.

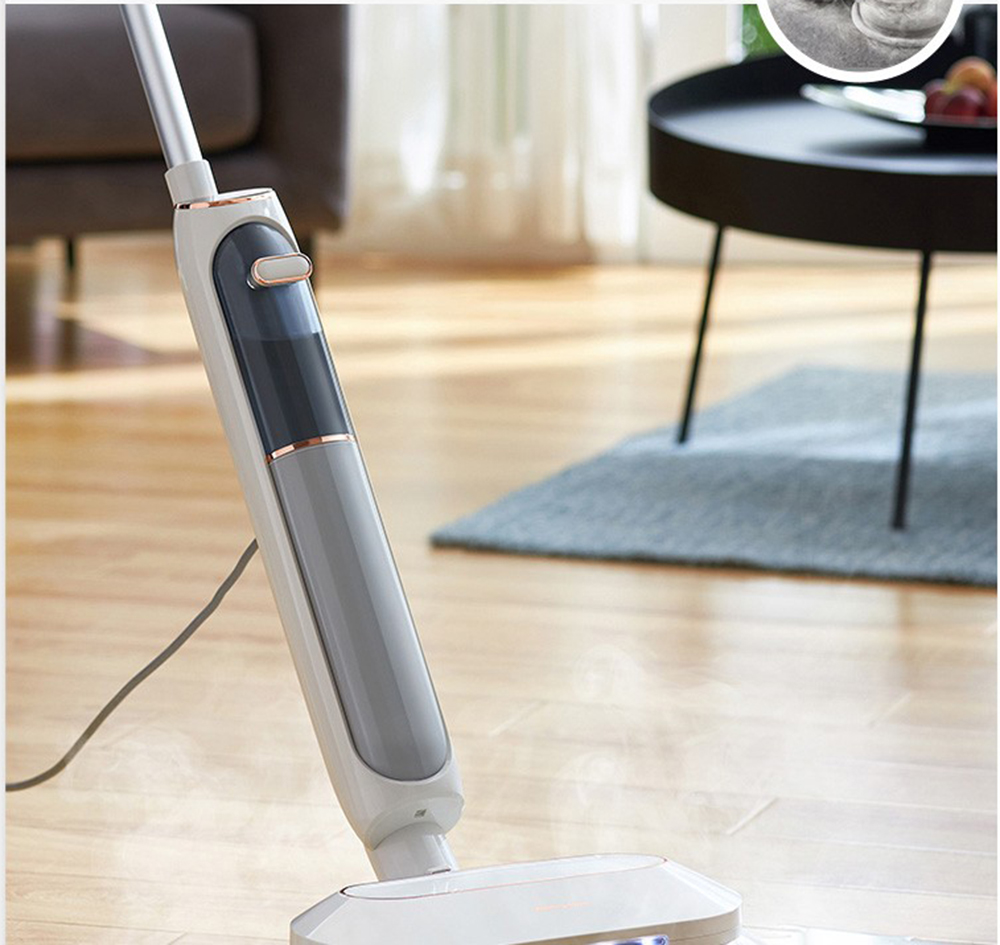

steam mop

Considering on all sorts of heater above, which have their own problems and weakness, Jieda developed a new type of steam generator, the main advantages are small size, slim, can reduce the whole weight and size of the machine, let the consumers have better experience in the process of usage, especially for a handheld steam ironing machine product, can design a small and delicate product. In addition, when in use, as the weight is about 20% lighter than the traditional heater, so the complete machine experience will be better, will not feel tired even holding for a long time.


At the same time, focus on the product performance, the advantages of thick film heaters are fully played and utilized. Because of small heat capacity, instant heating and circulation heating, the preheating time of the whole machine is more than 50% shorter than the traditional ones, which can well solve the problem that the traditional heater needs a long time to wait. Thick film heaters can achieve open-hot, open- steam, Because the thermal inertia is very small, the cooling time is very short, the stop working temperature drops rapidly, and the heat loss is small also.

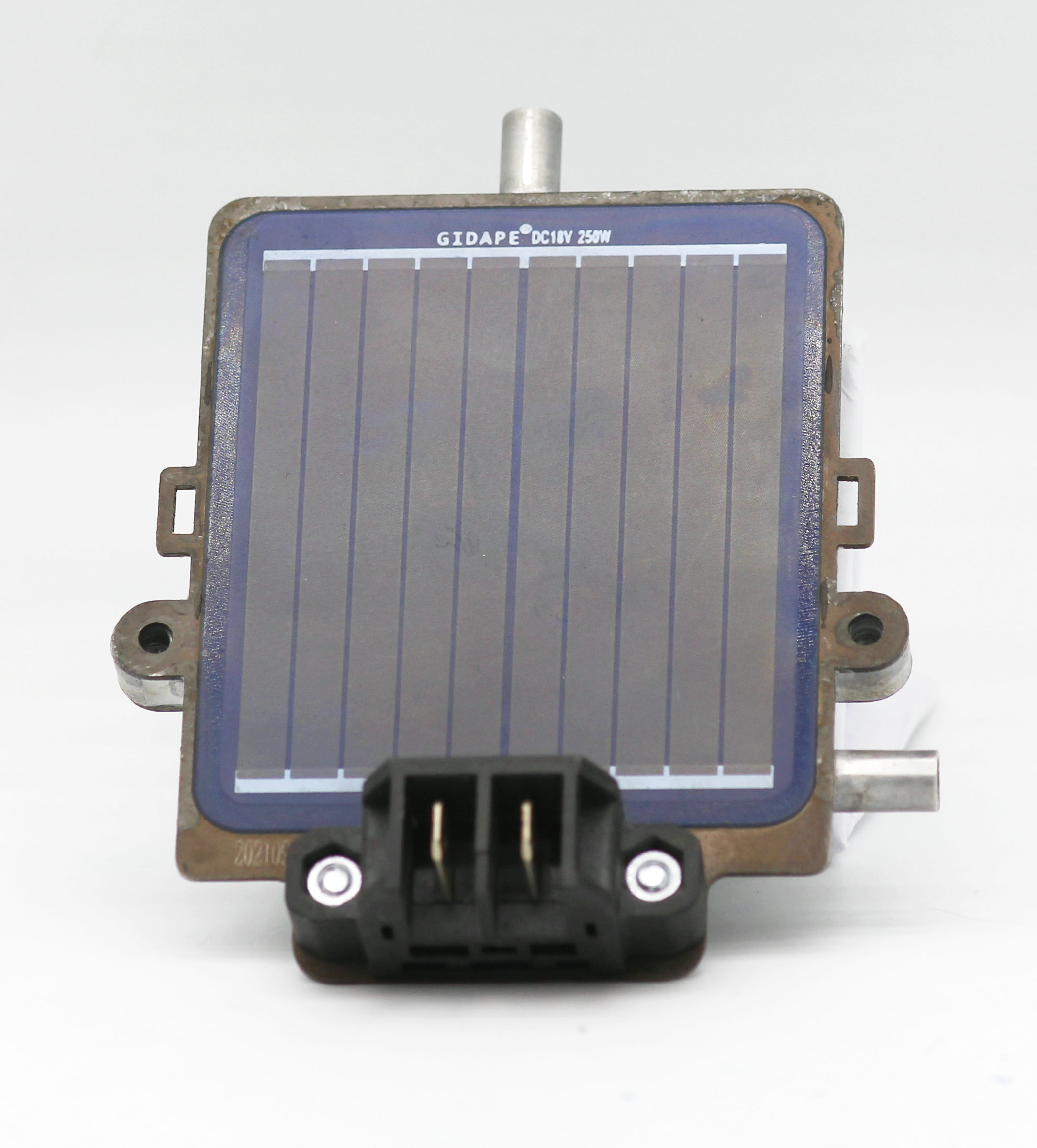

thick film steam heater (4).JPG


For consumers, the obvious advantage of thick film steam generator is large steam volume and uniform gas output. No matter it is used in hanging ironing machine or steam mop. Take our 1200W steam generator for example, the steam output of 120 Celsius can reach 28g/min, and the maximum outlet temperature can reach 160 Celsius.


A Jieda new research and development of thick film steam generator, which will applied in the field of steam household appliances, that will be a challenge compared with the traditional heater, but also a change and innovation in the field of steam generator, Jieda company will continue to improve and adjust the product, make it more conducive in products promotion and application.
