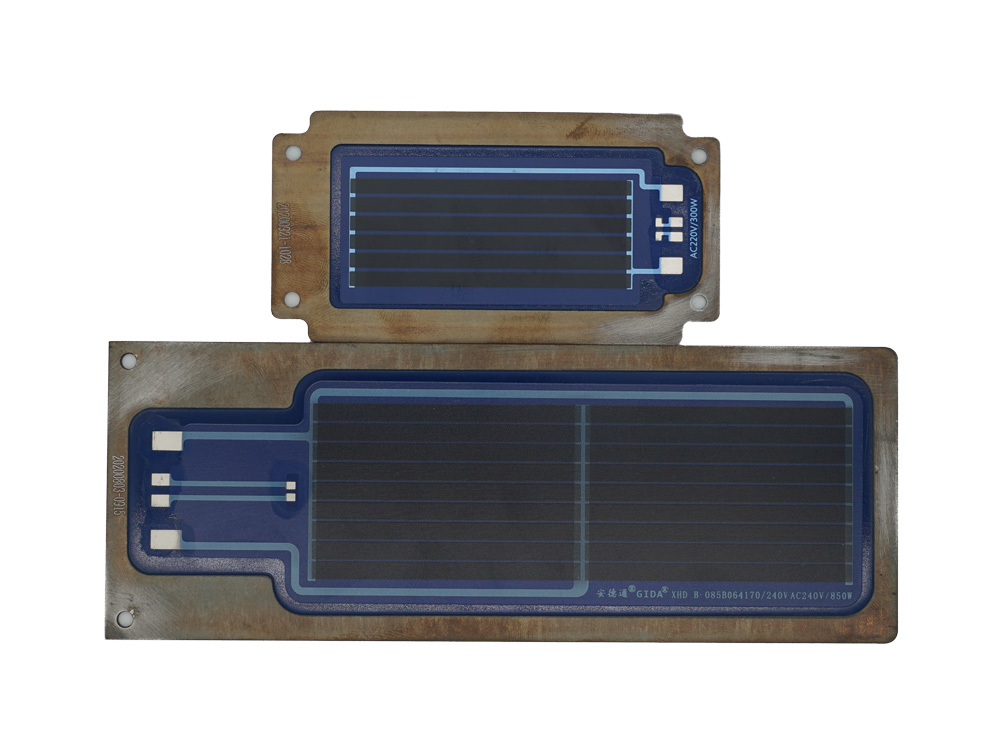

The thick film heating element has the characteristics of fast heating speed, uniform temperature in the heating area, low thermal quality, high efficiency, and small volume. It is especially suitable for electric vehicles and hybrid vehicles as high
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

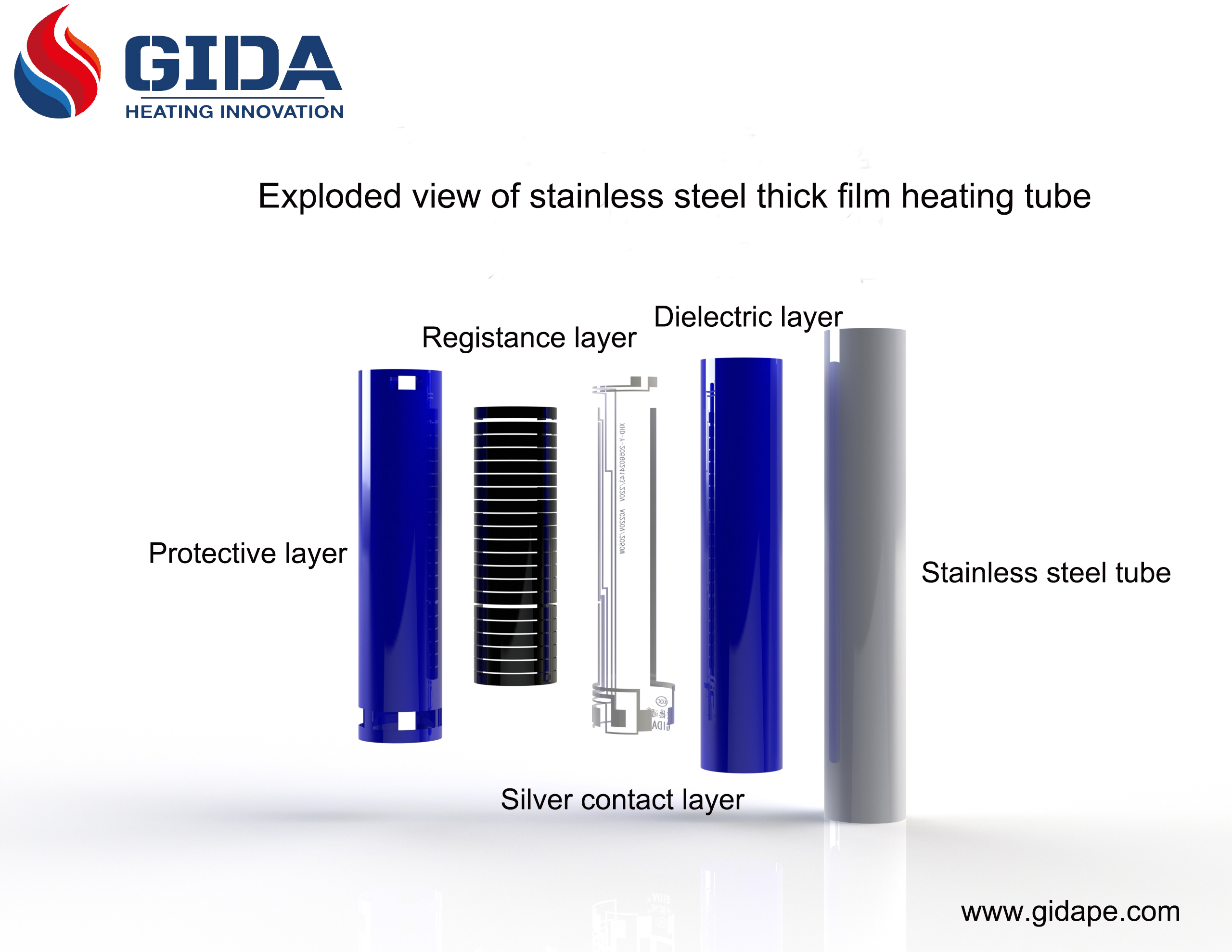

  Stainless steel thick film heating technology originated from Europe and the United States, it uses screen printing technology to print layers on base material, these layers are insulation medium, resistance, conductor, protective glaze etc., high temperature sintering is employed to form a dense layer of microcrystalline glass film, not easy to fall off, not easily scratched.


  Product features

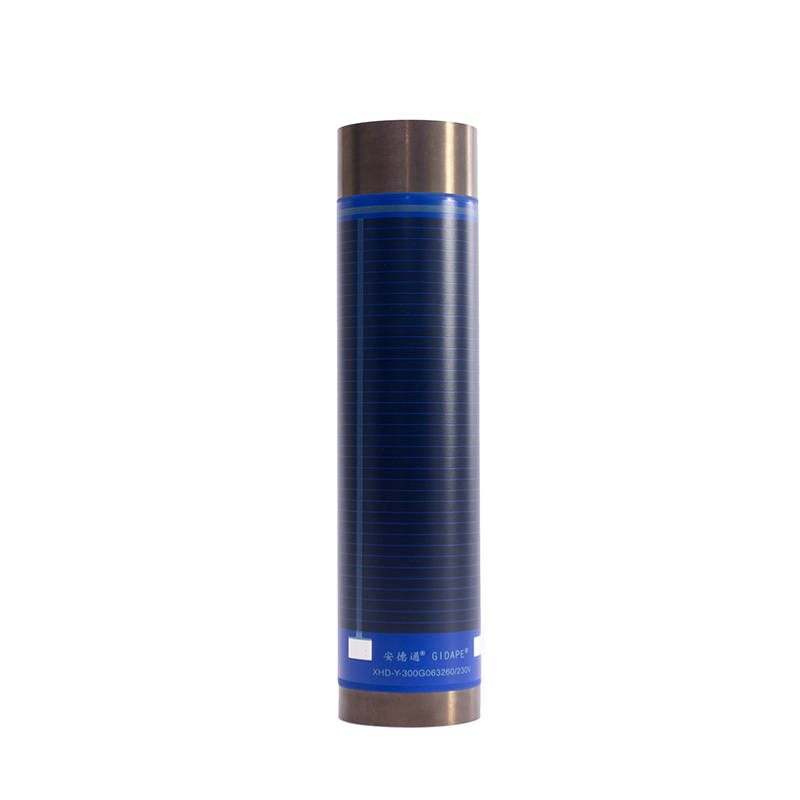

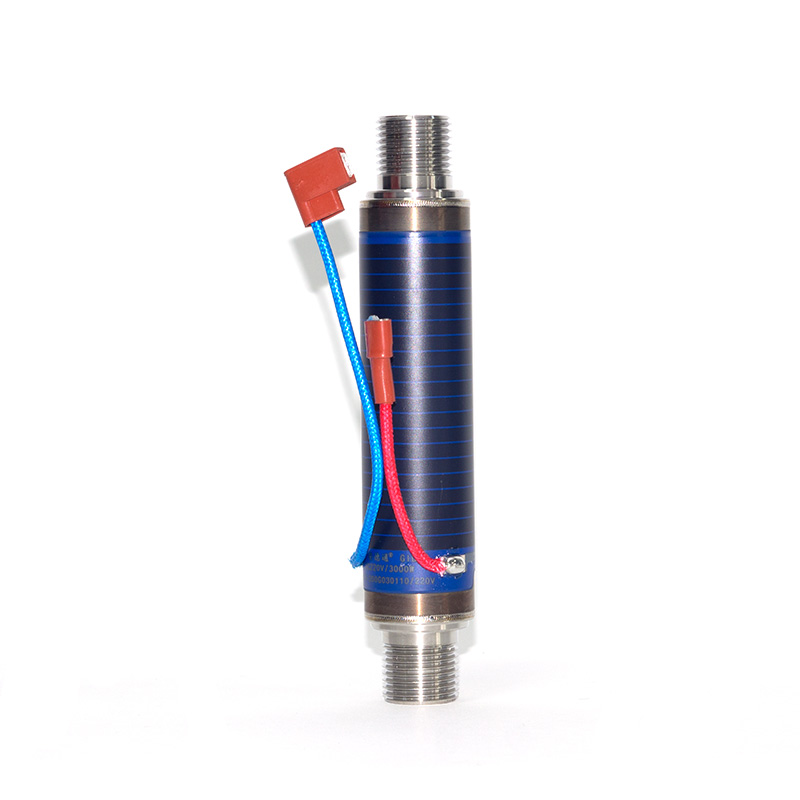

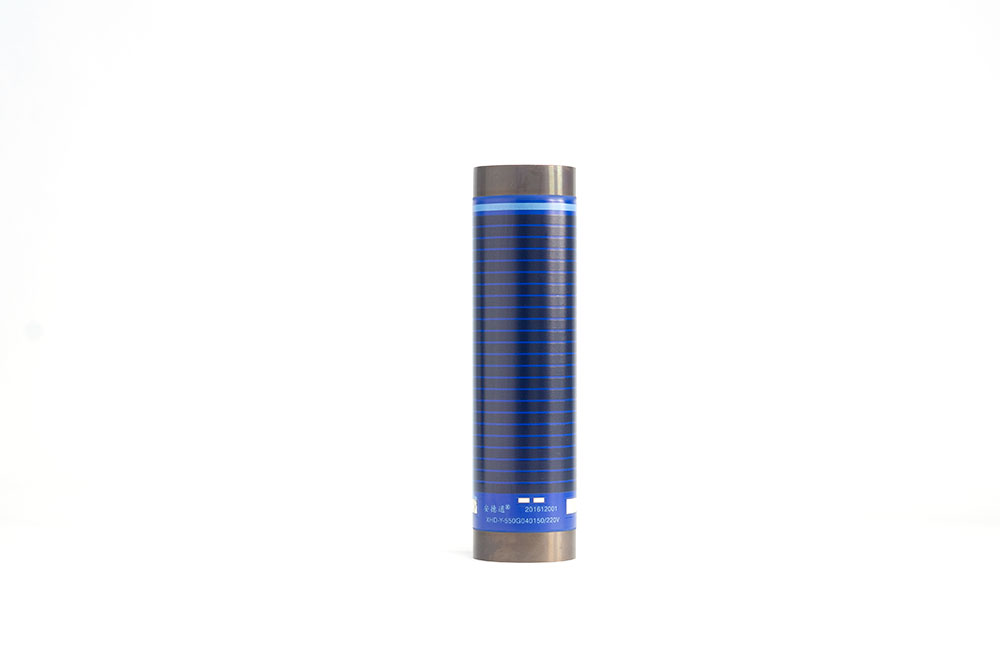

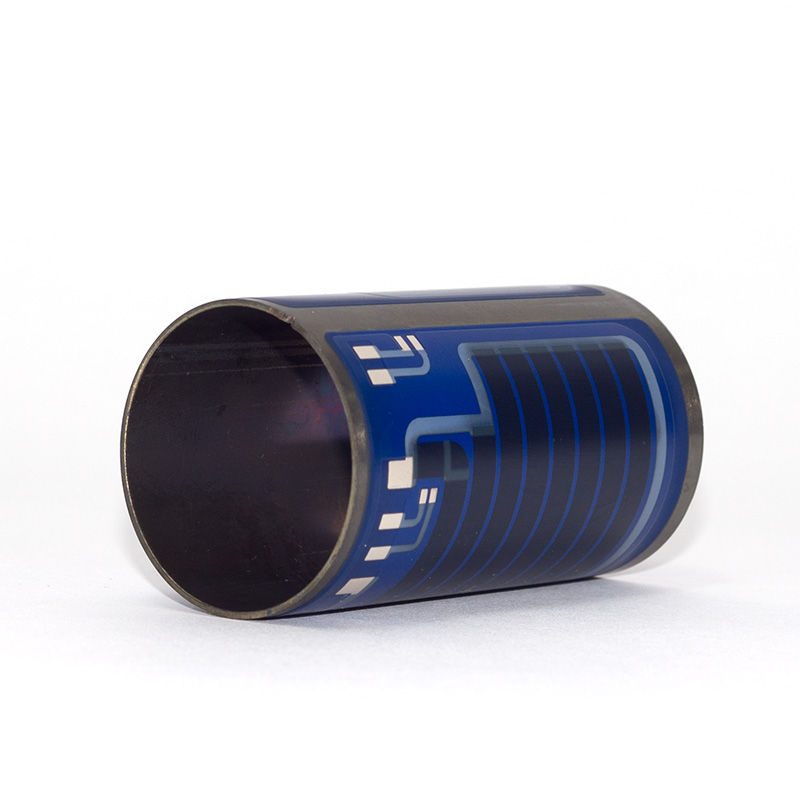

  GIDAPE® stainless steel thick film heating tube has the following characteristics:

  1, Safe and durable high strength: stainless steel substrate, multi-layer microcrystalline vitreous insulation.

  2, Fast heating: heating circuit has temperature rise over 80~150 degrees per second.

  3, High utilization rate of heat: directly rapid-heat stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.

  4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body and mind.

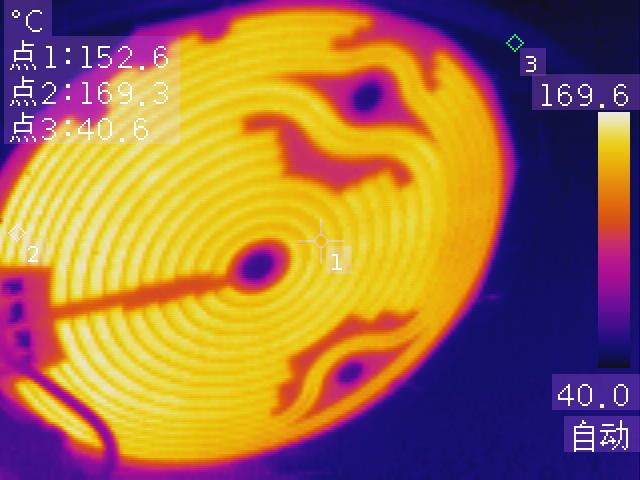

Temperature uniformity heater

  Product parameters

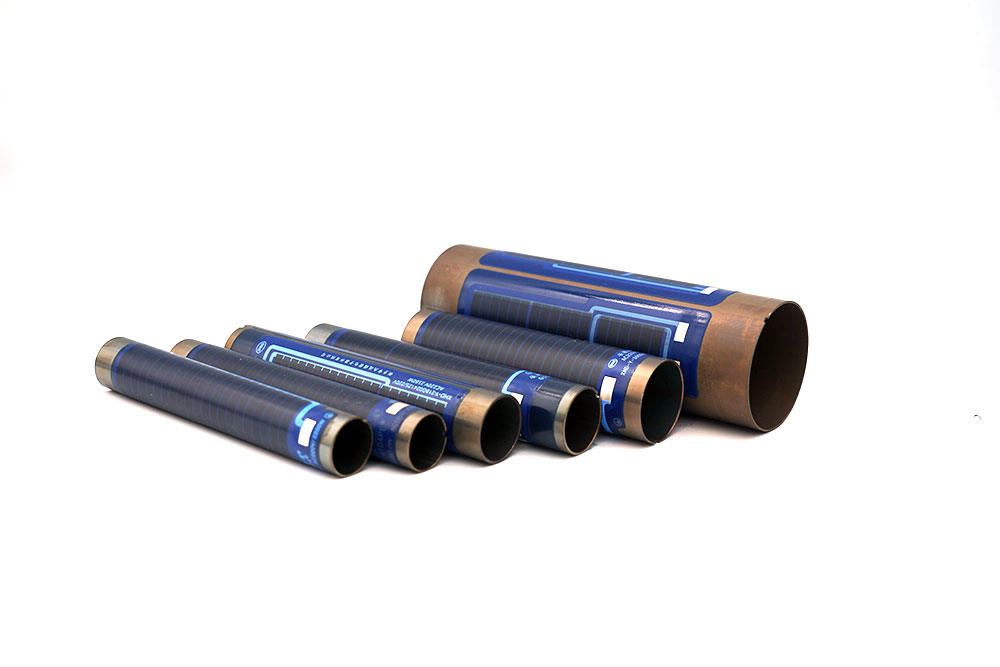

  According to the special application for vehicle, we recommend the diameter of the heater from Φ30 to 75mm, and the maximum power is 16kw. The detail information is as below.

NO.

Diametermm)

Thicknessmm)

Max Length (mm)

Power

Voltage(v)

1

30

1

225

From 3KW-6KW

DC250V-800V

2

42.5

1

225

From 3Kw-9Kw

DC250V-800V

3

63

1

225

From 3Kw-13Kw

DC250V-800V

4

75

1

225

From 3Kw-16Kw

DC250V-800V

tubular-heater

  Product use precautions

  1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with fluid before use.

  2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.

  3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, to avoid vaporization and dry burning.

  4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.

Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
