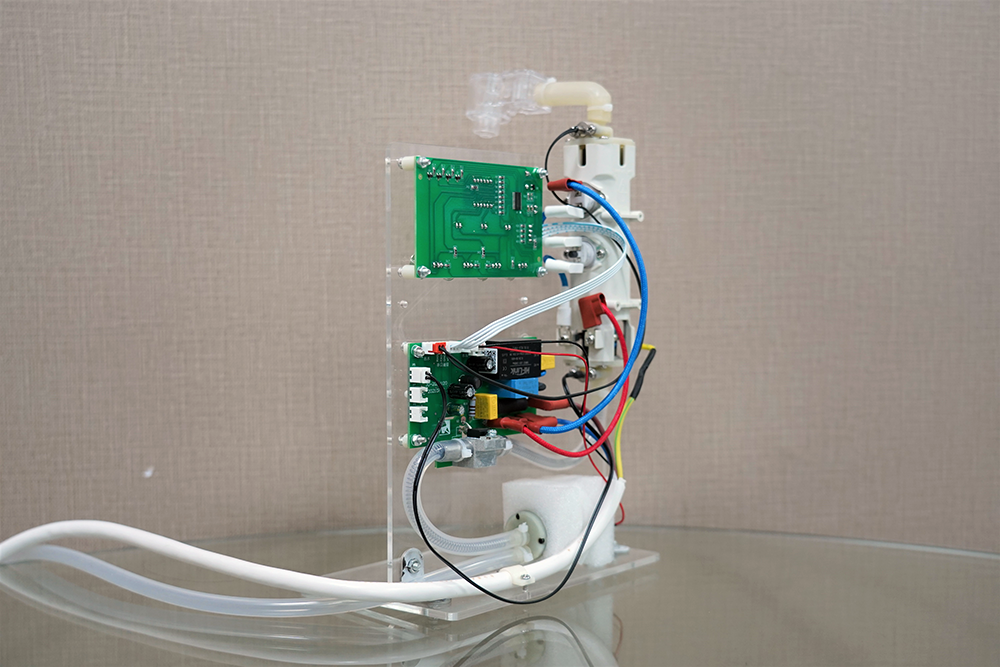

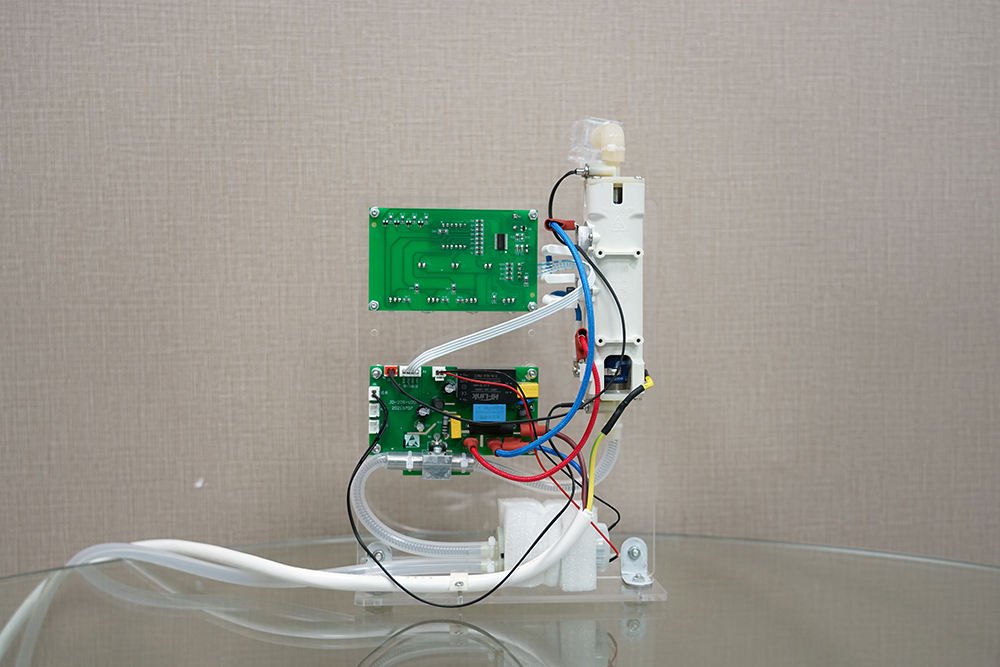

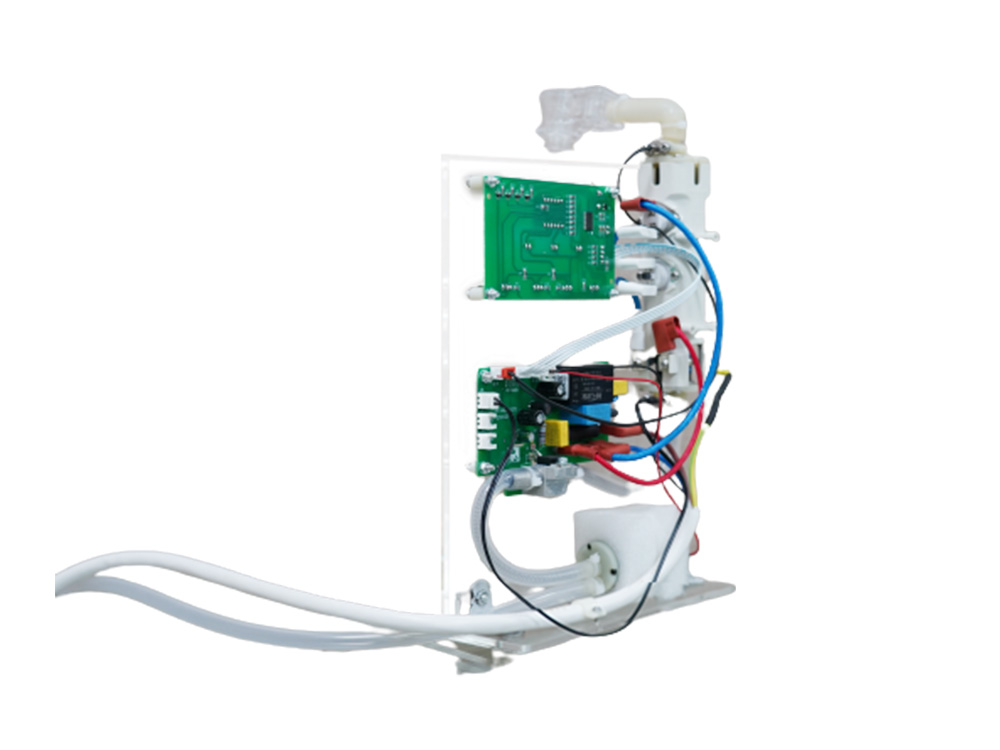

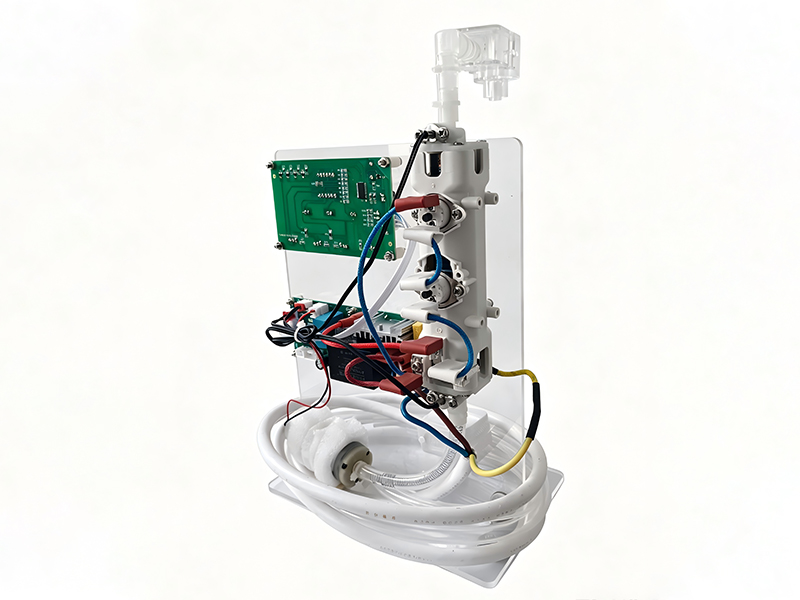

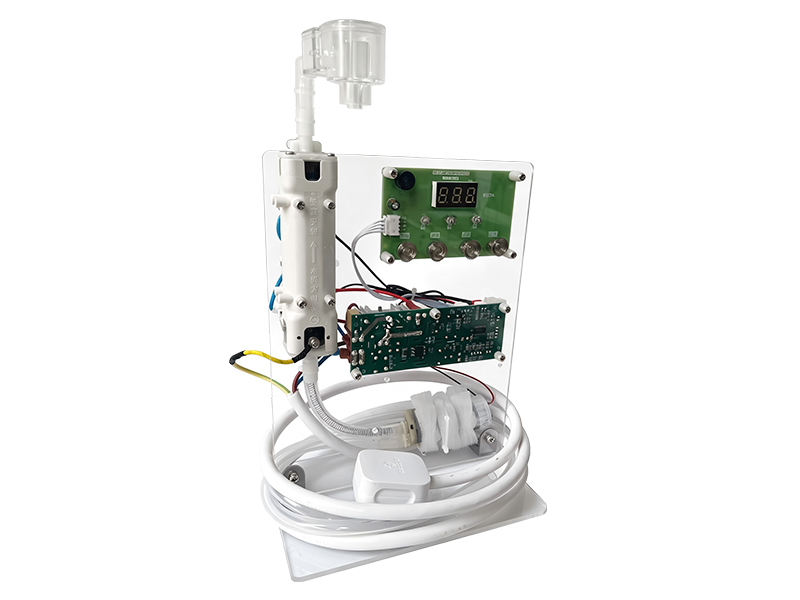

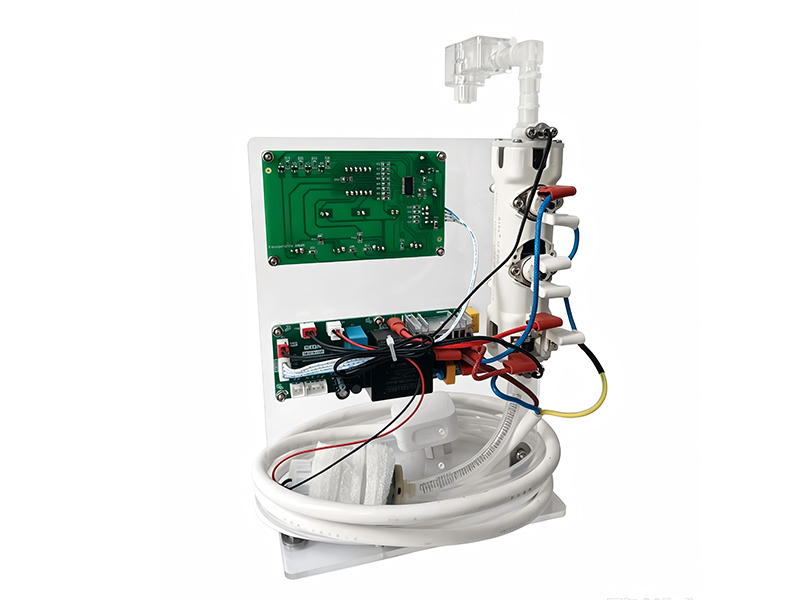

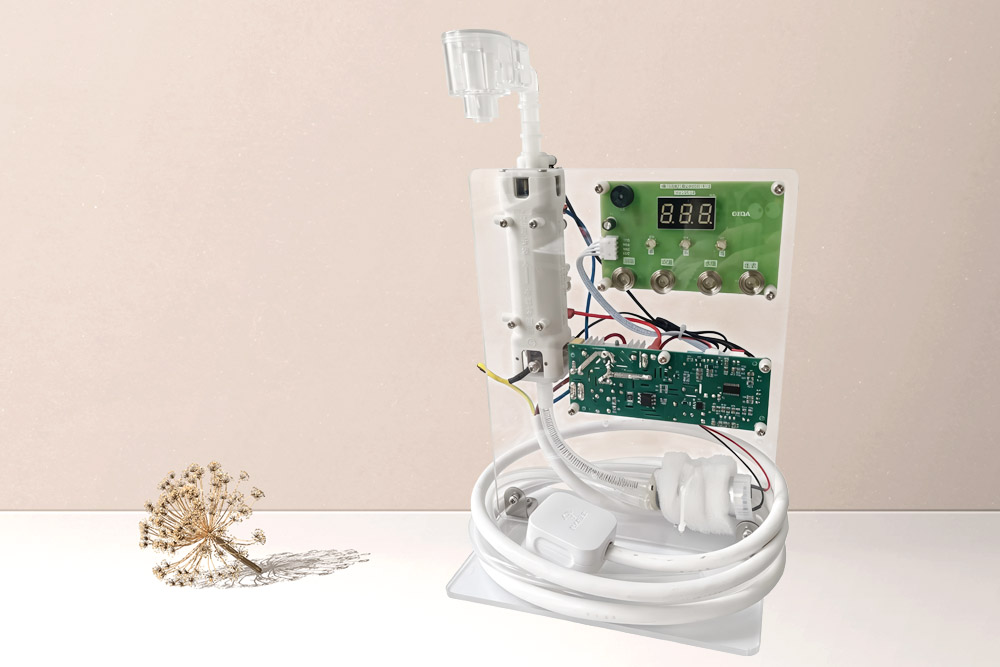

20 instant heating kits

20 instant heating kits

20 instant heating kits

20 instant heating kits

20 instant heating kits

20 instant heating kits

20 instant heating kits
Getting hot water in 1S Stable water temperature on outlet ±1℃ tolerance Safety protection, detection and monitoring, fault alarm, triple dry burning protection Constant temperature and quantitative effluent: meet the needs of drinking water at
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

  Product characteristics

  To let customers intuitively feel the product performance advantages of thick film heater, GIDA designed this module product. Because GIDA has a better understanding of the product performance of thick film heater, it directly provides customers with integrated heating solutions, including hardware cooperation and software programs, which can effectively shorten the customer's new product development time and faster application of instant heating solutions.

  Getting hot water in 1S

  Stable water temperature on outlet ±1℃ tolerance

  Safety protection, detection and monitoring, fault alarm, triple dry burning protection

  Constant temperature and quantitative effluent: meet the needs of drinking water at various temperatures in daily life. It is normal temperature water, 45 ℃ for milk and honey, 85 ℃ for tea and 95 ℃ for coffee.

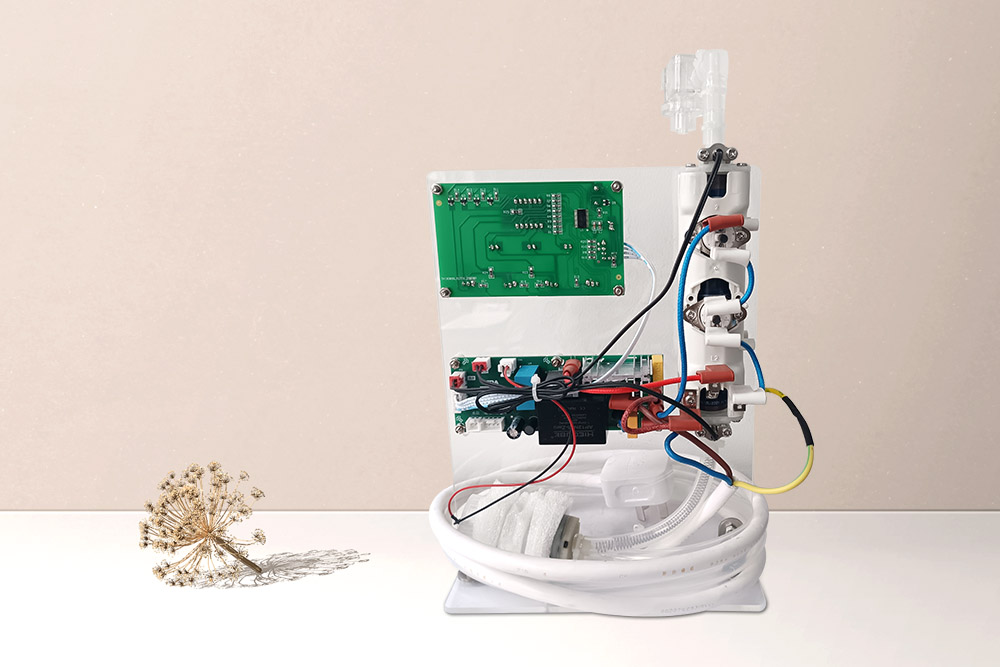

Product configuration

 No.

Item

Specification model

1

20BJ Heating Element

Heating Element Assembly

2

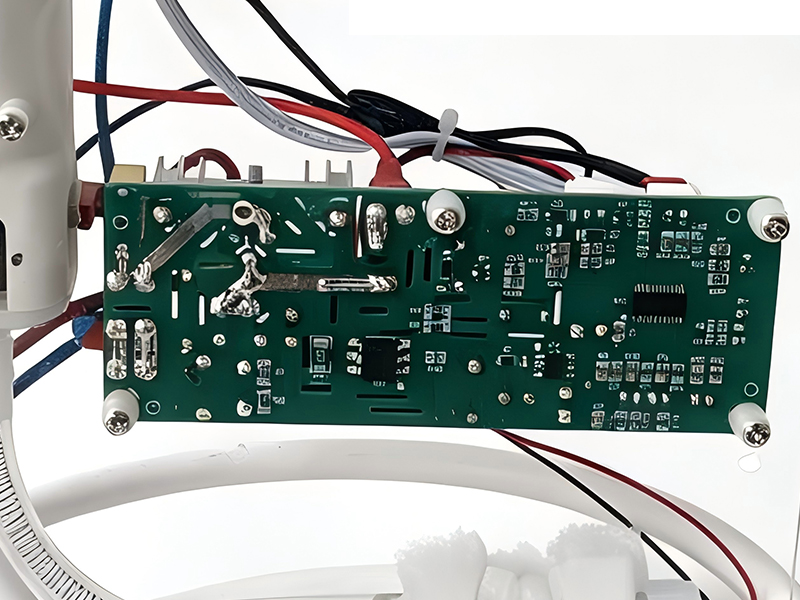

Heating Kit Control Board

Power adjustment with Thyristor (water cooling)

3

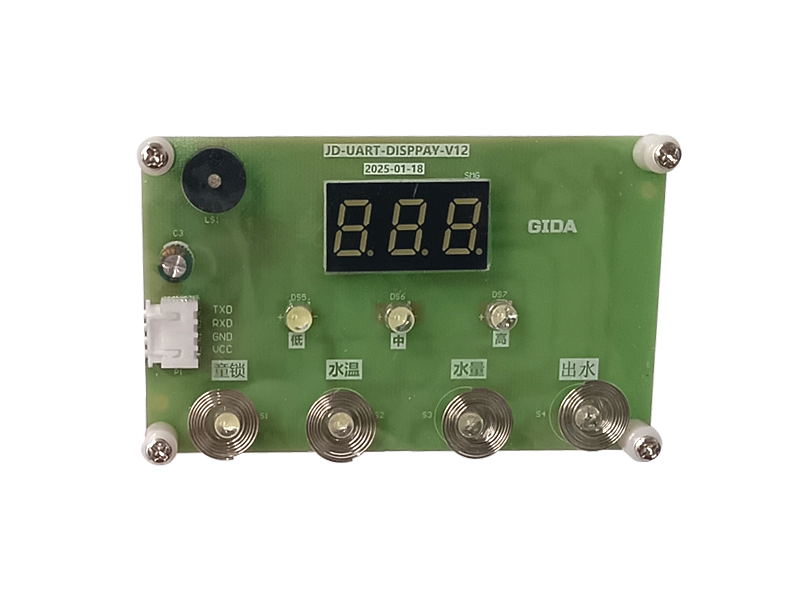

Heating Kit Display Board

JD-UART-DISPPAY

4

Water Pump

SC3711PW/12V 1L/min

5

Water vapor separation nozzle

/



Product instructions

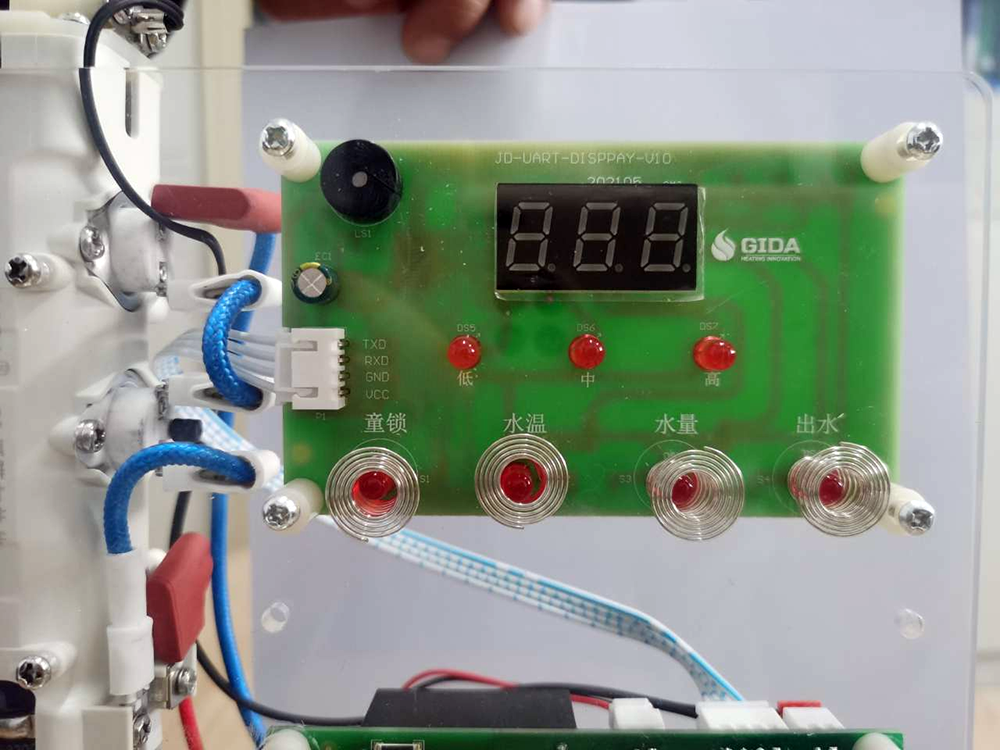

Key

Function

Child lock key

The display shows ("---"), other keys are invalid, press again, other keys will resume their functions

Water flow key

Press to change one gear each time, the gears are set cyclically (low: 150mL; middle: 500mL; high: 1000mL)

Temperature key

Press to increase the temperature by 5℃ each time, when it reaches 100℃, it will return to 25℃ and then press to 45℃; the temperature can be set cyclically from 25, 45, 50, 55...100℃.

Power key

1. Long press to start working, and when the water output reaches the set position, it ends working and returns to the standby state; Short press during work, interrupt work and return to standby state;
2. To prevent anhydrous dry burning in the heating tube, the circuit board will automatically supply water for 2S after the first power supply, and then start heating;
3. If there is an alarm without power off, press the button again, it will supply water for 8 seconds automatically, then start heating.



Product Parameters

No.

Item

Technical Parameters

1

Voltage

AC220V 50Hz

2

Power

2200W(-10%,+5%)

3

Outlet Temperature

Normal atmospheric temperature45℃-100℃,every 5℃ one section±1℃)

4

Outlet flow

150ml、500ml、1000ml(±10%)

5

Rated water pressure

≤0.05MPa

6

First Hot Water Time

3-6s

7

Refilling Time

1s

8

Service Life

When the water pressure is 0 Bar, the service life is ≥500H

9

Water level detection, inlet water temperature detection, outlet water temperature detection, outlet water volume detection, safety protection.

10

Safety protection function: water shortage protection, icing protection, over temperature protection, dry heating protection.

11

Remark: When the program is set to 100°C, the actual outlet temperature is 97°C. (The actual outlet temperature is adjustable).


  Product Control Principle

  The test kit starts to work after setting the outlet temperature, the electric control board provides a certain power to the heating body according to the set temperature, the temperature detected by the outlet temperature sensor and the inlet water temperature sensor, a speed signal is given to the water pump, then two temperature sensors adjust the speed of the pump in time (adjust the flow rate) though received temperature signal to achieve real-time adjustment of the outlet temperature

  Product application

  Table-top hot water purifier, table-top water dispenser, under-sink water purifier, wall mounted hot and cold pipeline machine, drip coffee machine.


Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
