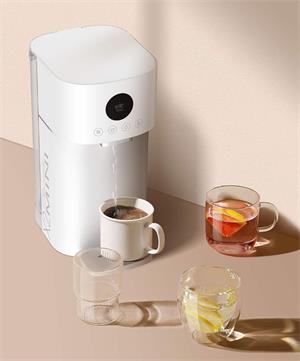

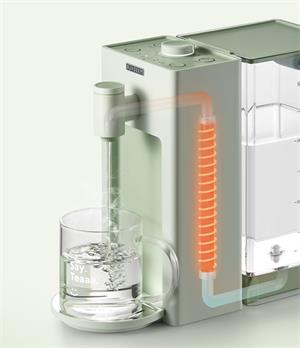

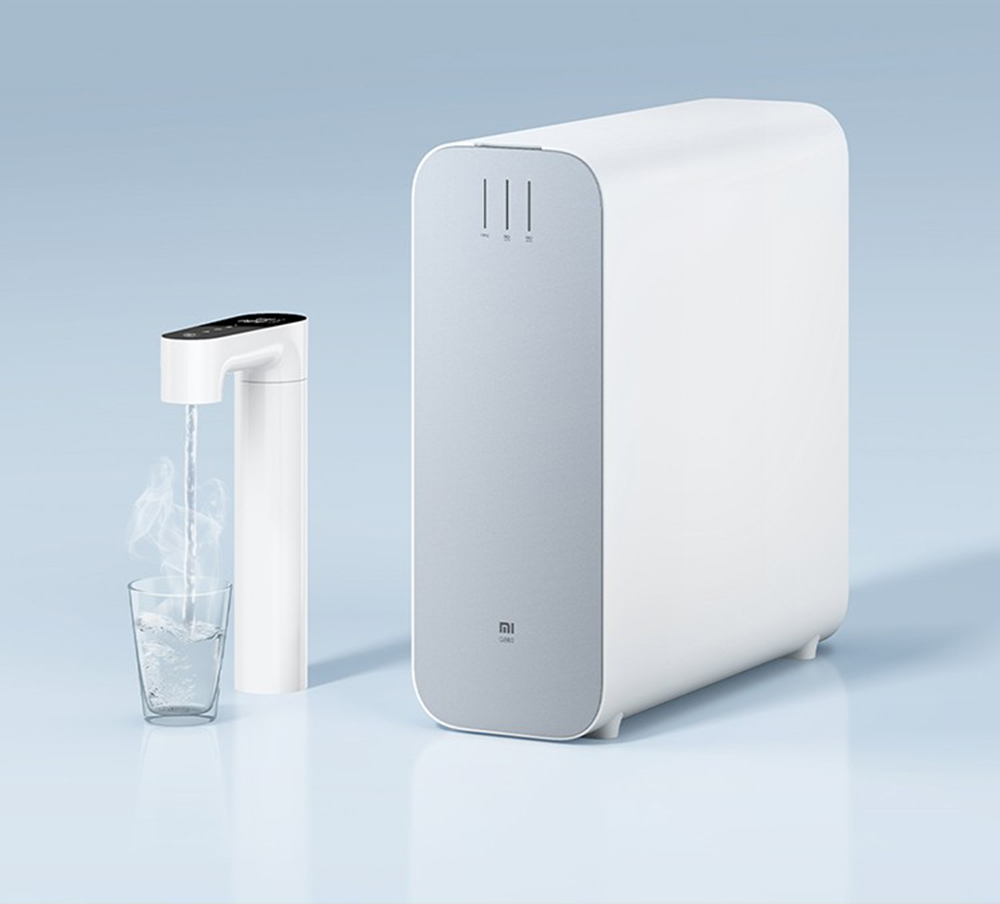

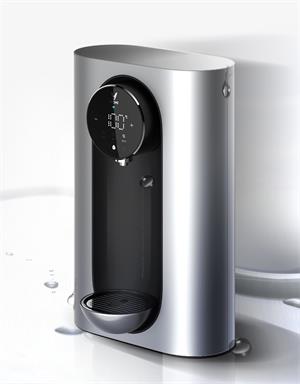

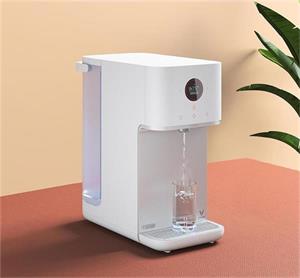

instant hot water dispenser, instant hot water purifier, pipeline machine, coffee machine, small kitchen heating machine , medical equipment.
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

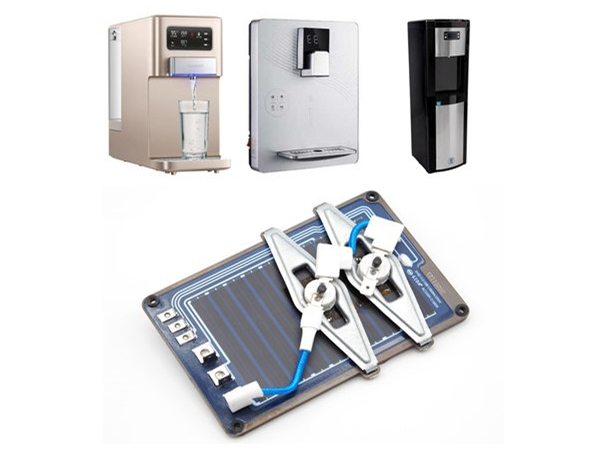

  Application: instant hot water dispenser, instant hot water purifier, pipeline machine, coffee machine, small kitchen heating machine , medical equipment.

  Features: new plate heating structure, rapid response, uniformly heating, stable water flow, high flow, brazing process.

  Advantages: rapid heating reaction, no heat exhaustion, without peculiar smell, no deformation

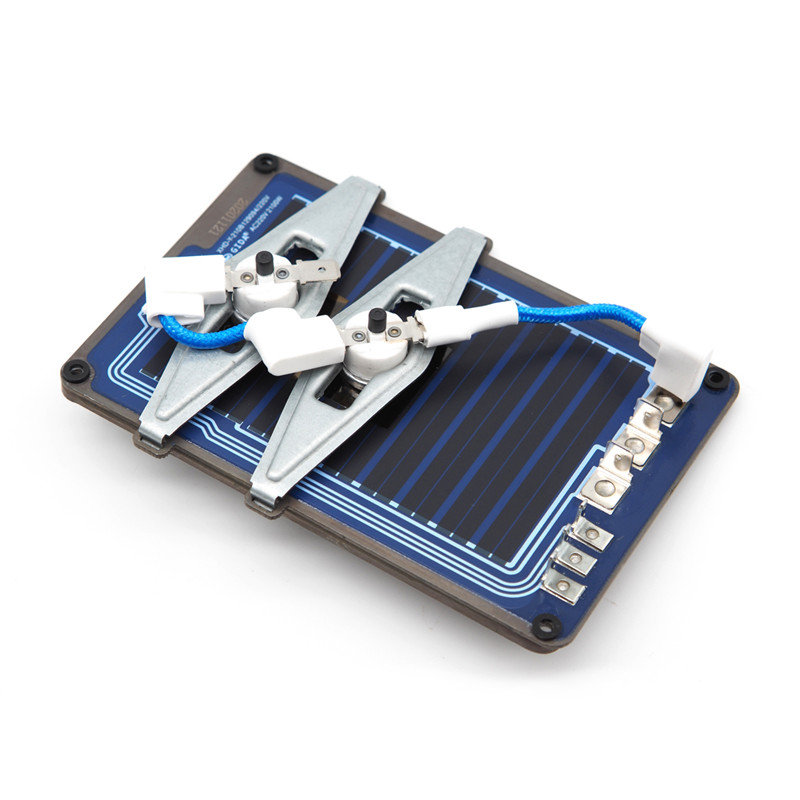

thick flim heating plate  (1)

  Product introduction: Thick film electric heating technology, instant heating, quick thermal reaction time, drinking hot water without waiting, meet the daily hot water needs of families, can also be applied to hotels, restaurants and other industries drinking water needs.

  1. The new upgraded second-generation plate structure, brazing process, widened flow channel,

  2. Uniformly heating, thermal efficiency of 97%, no thermal attenuation.

  3. Without shunt water, without peculiar smell, no deformation when heated.

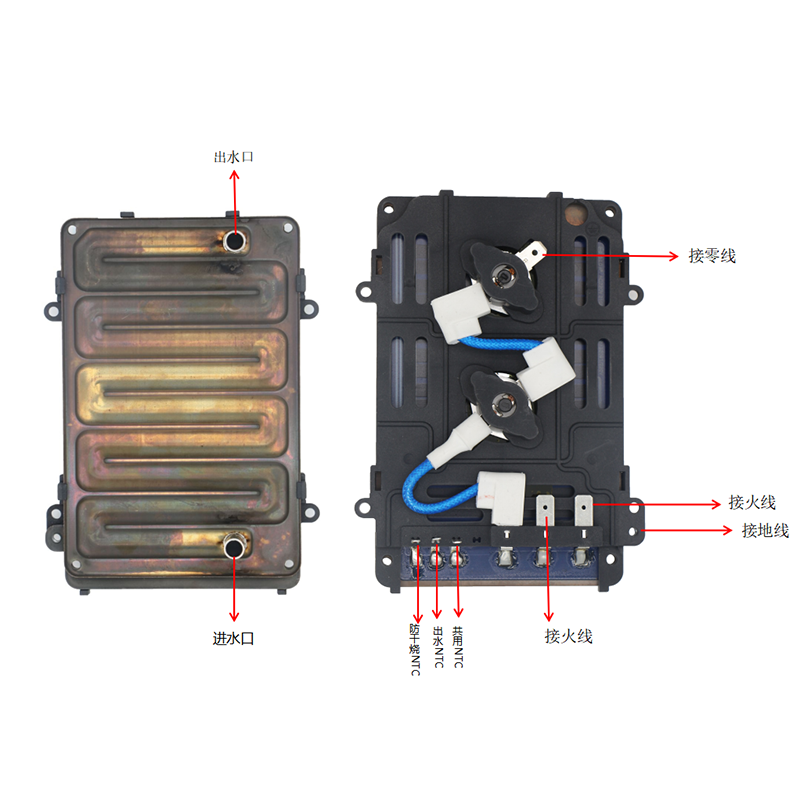

  4. Integrated NTC temperature sensor, used for temperature control and dry burning protection, greatly improve product control precision and safety performance.

  5. The outlet temperature is up to 97 degrees, and the flow rate is stable.Heating 3 seconds can produce boiling water, up to 500ml per minute.

  6. More than 6000 hours of product life.

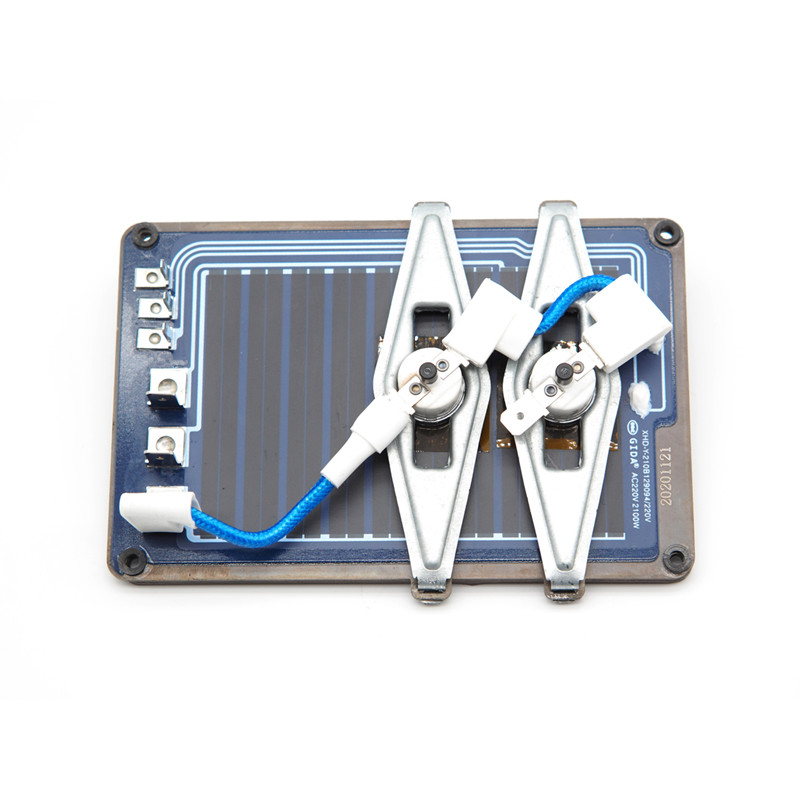

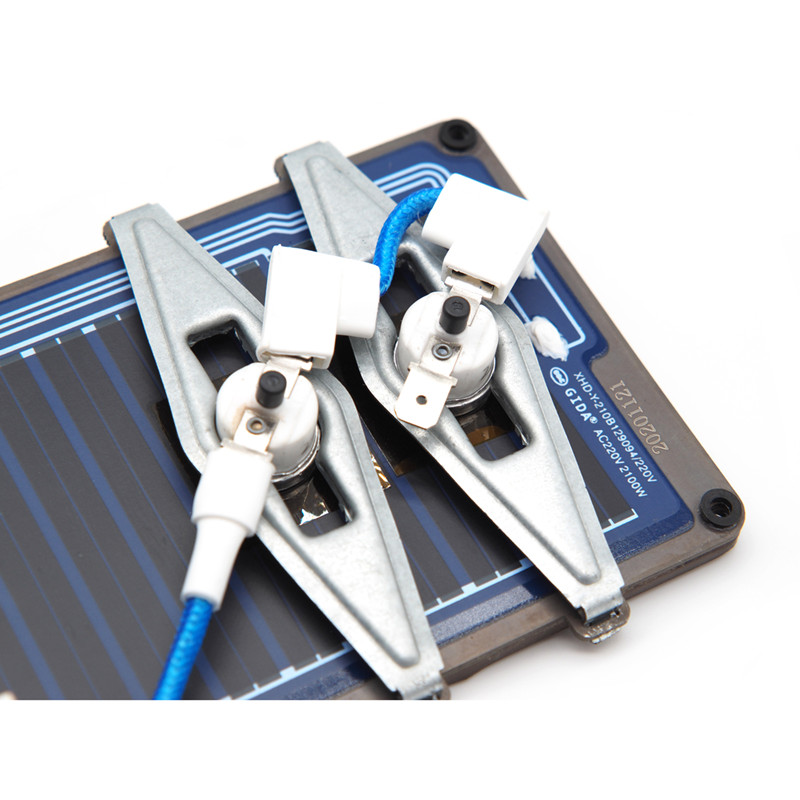

thick flim heating plate  (3)

Parameters:

No

Items

Parameters

1

Rated voltage

AC220V  50Hz

2

Max current

16A

3

Rated power

2100W-10%+5%

4

Resistance

19.76~24.46Ω

5

Electric Strength

AC1500V/5mA/3s, no breaks or flash

6

Current Leakage

On 1.15 times of rated power, leakage 0.25mA

7

Maximum bearing pressure

2MPa

8

Overload capacity

Maximum overload voltage 264V

9

Service Life

Temperature of the tube surface<300°C, life time 6000h

10

Power density

53W/cm²

11

Thermal efficiency

97%

12

Thermal reaction time

0.9s

13

Rate of temperature rise

6s

14

Effluent temperature stability

±0.5

15

Size of heater

136*98*39mm

16

Size of inlet and outlet

φ7 with anti-slip ring

  Customized: Standard power 2100W, voltage and power can be customized according to regional requirements

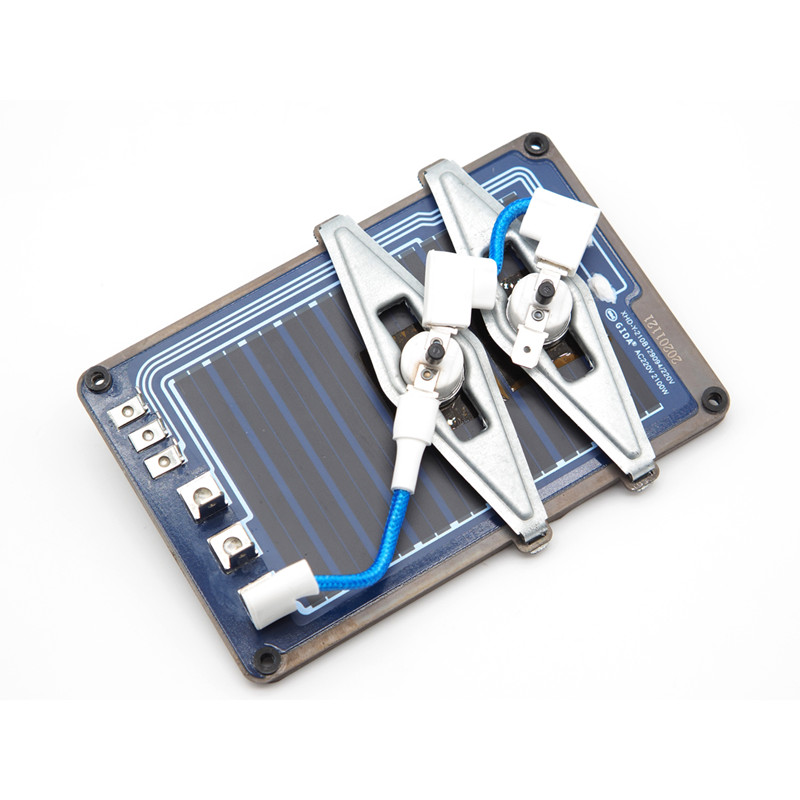

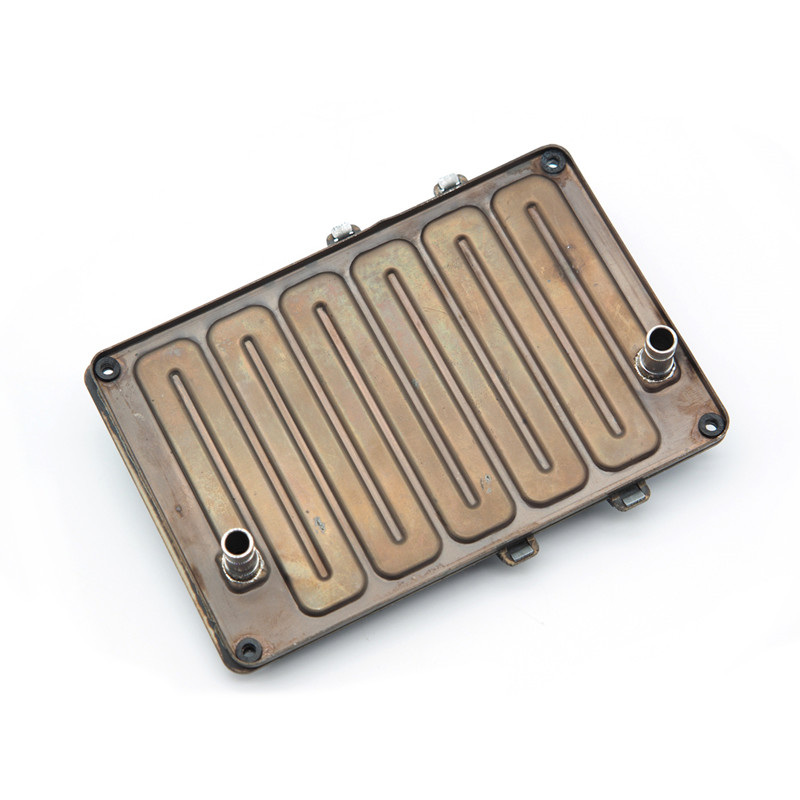

thick flim heating plate  (2)

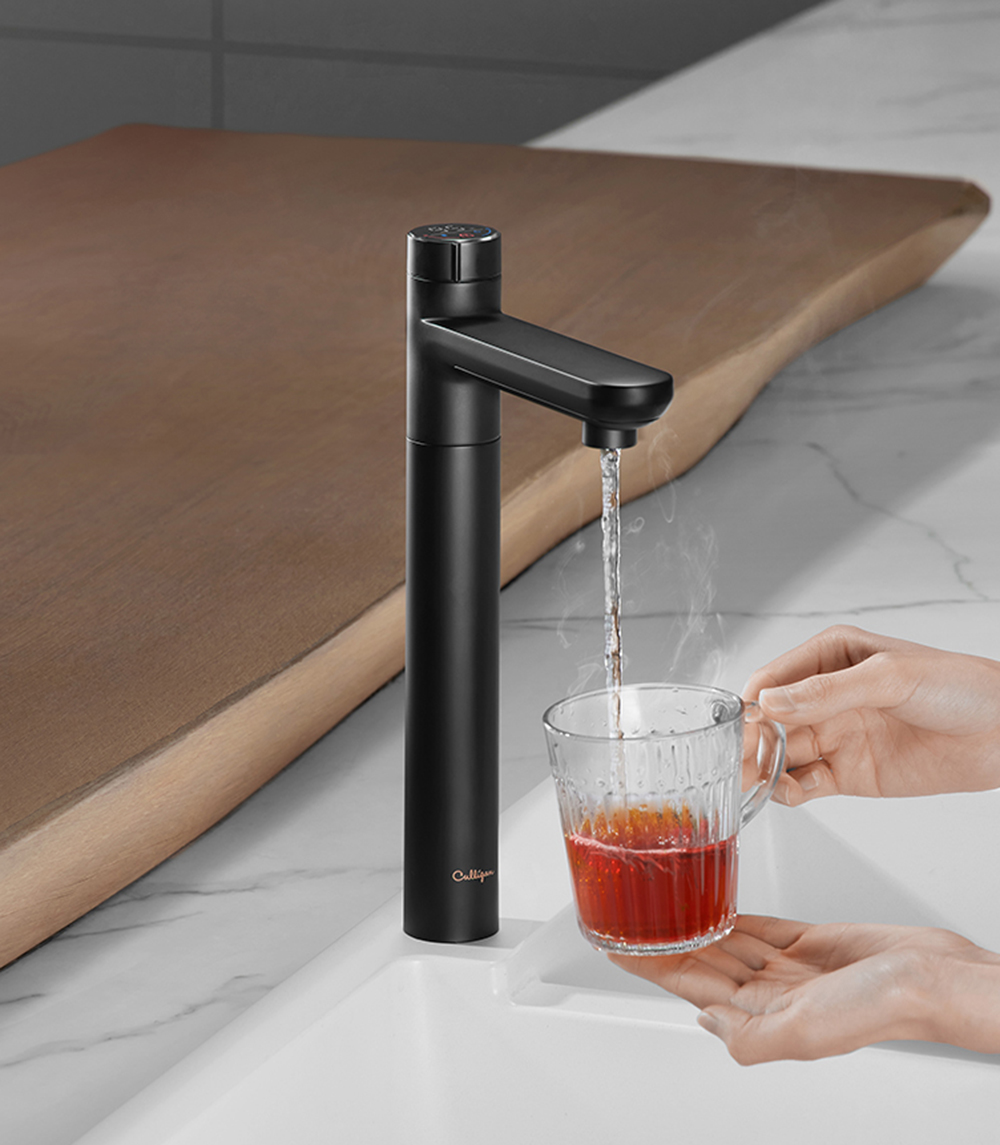

Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
