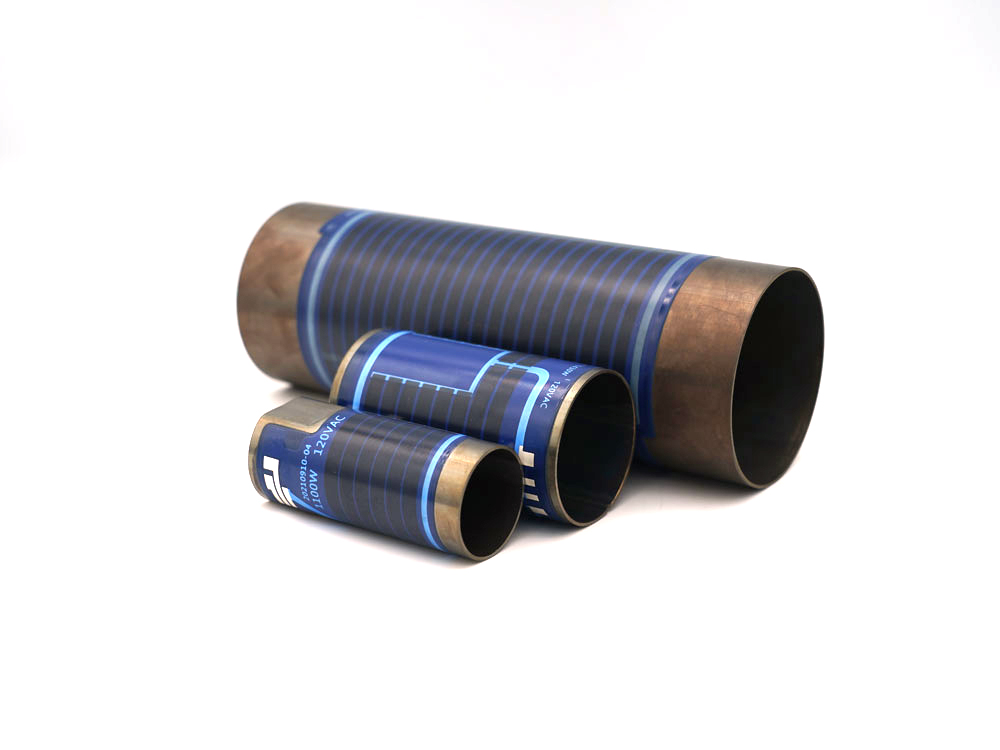

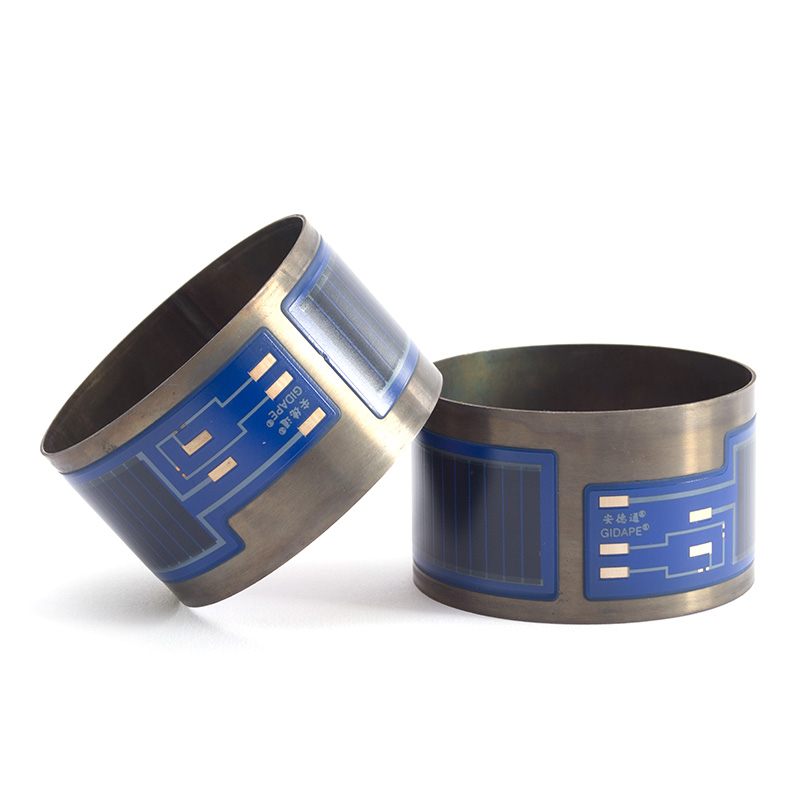

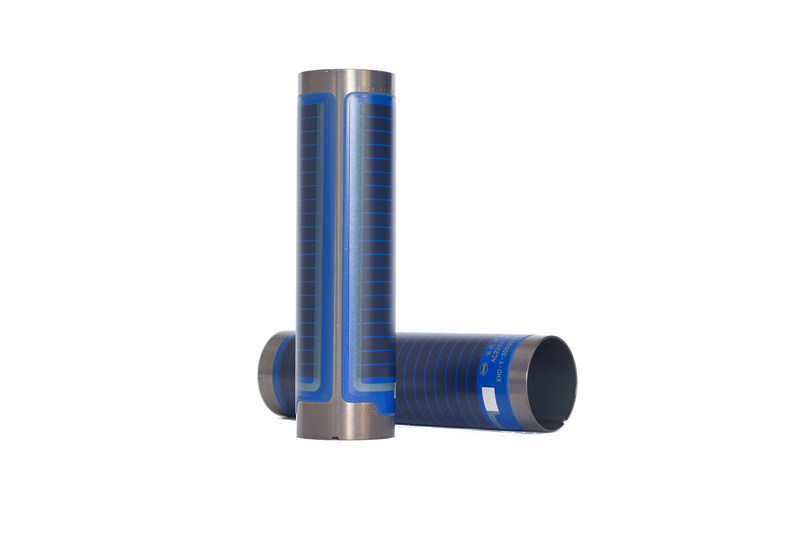

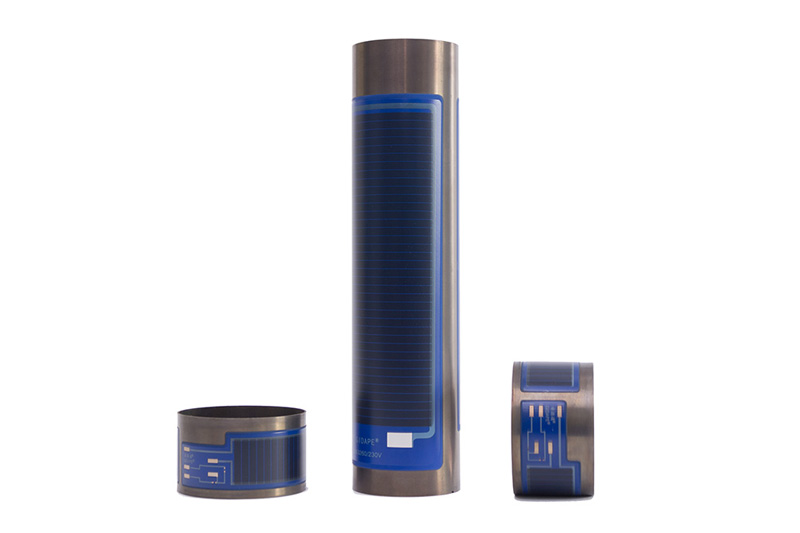

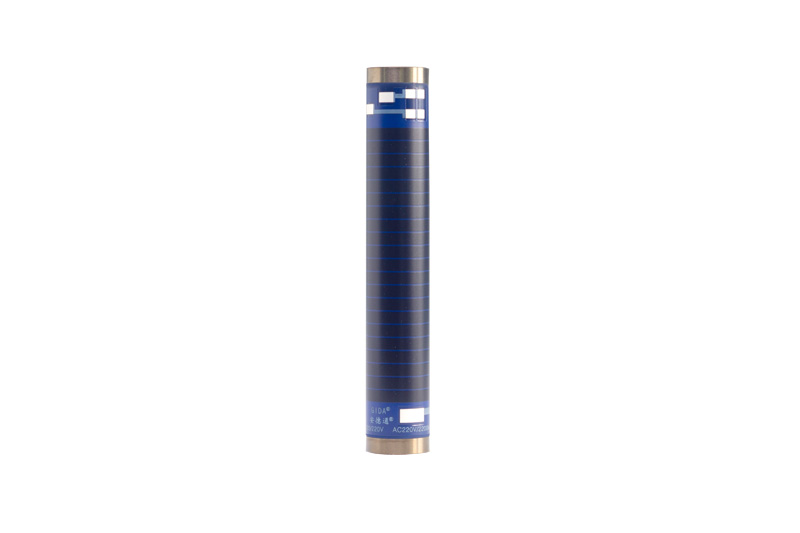

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw

Tubular thick film heating element 300w-10kw
Safe and durable high strength: stainless steel substrate, multi-layer microcrystalline vitreous insulation. Fast heating: heating circuit has temperature rise over 80~150 degrees per second. High utilization rate of heat: directly rapid-heat stain
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

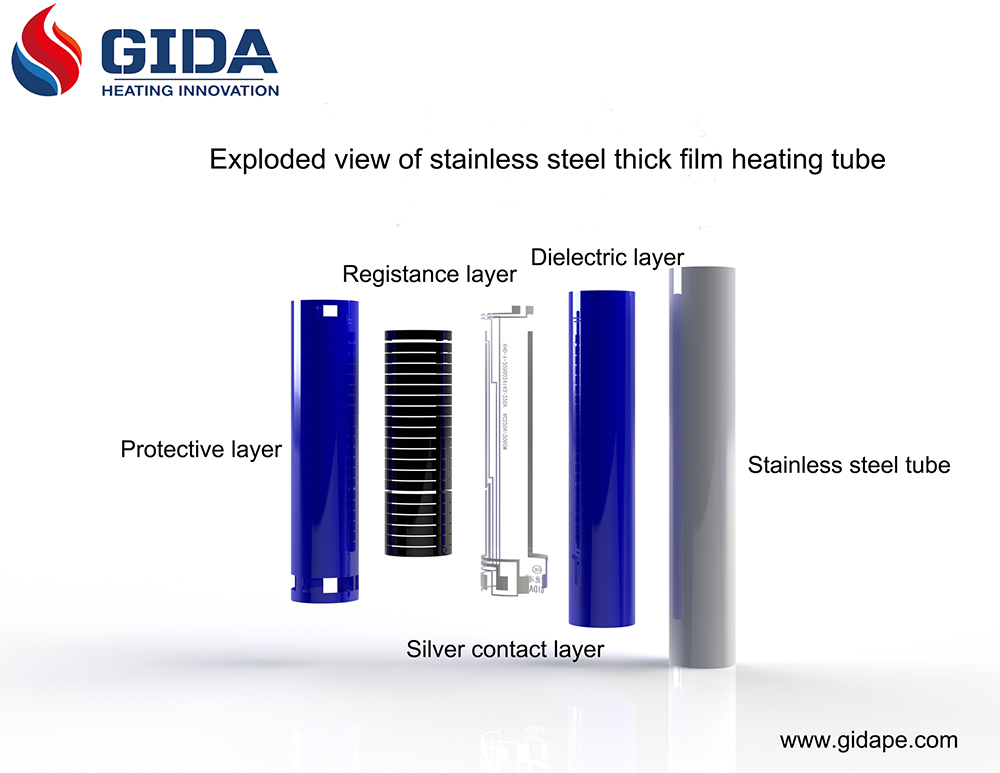

  Stainless steel thick film heating technology originated from Europe and the United States, it uses screen printing technology to print layers on base material, these layers are insulation medium, resistance, conductor, protective glaze etc., high temperature sintering is employed to form a dense layer of microcrystalline glass film, not easy to fall off, not easily scratched.

electric heating tube

  Product features

  GIDAPE® stainless steel thick film heating tube has the following characteristics:

  1, Safe and durable high strength: stainless steel substrate, multi-layer microcrystalline vitreous insulation.

  2, Fast heating: heating circuit has temperature rise over 80~150 degrees per second.

  3, High utilization rate of heat: directly rapid-heat stainless steel tube, a big heat exchange area, fast replacement, efficiency up to above 98%.

  4, Green and environmental protection: pure resistive load, no electromagnetic radiation, good for human body and mind.

  5, Customized services: we tailor-make electric heat products and provide application solutions for enterprises.

2200w thick film heater

  Product parameters

  Currently GIDAPE® series stainless steel thick-film heating tube diameter distribution Φ15-110mm, length30mm -150mm, the single pipe maximum power 16KW. Special power, voltage, requirements can be customized design.

NO.

Diameter
mm)

Thickness
mm)

Length
(mm)

Weight
g)

Power/voltage
w/v)

Customizing Length (mm)

Customizing power

/voltagew/v)

1

15

0.8

160


2100/220



2

20

0.8

120

44.2

2200/220

225

Under 4000/380

3

23.8

1

125

72.4

(685+1365)/220

225

Under 5000/380

4

30

0.8/1

110

63

3000/220

225

Under 6500/380

5

42.5

1

76.3

79.6

1430/240

225

Under 9500/380

6

63

1

180

90

6000/240

225

Under 13000/380

7

75

1

45

76.8

2080/230

225

Under 16000/380

  Highly welcome to custom the flat heater, such as square heater and circular heater

thick-film-heater

  Product use precautions:

  1, The product temperature rising rate is greater than 80 ℃~150℃/S, so, please ensure that the tube is filled with water before use.

  2, The pipe must be installed vertically when heating liquid, the direction of liquid flow is from the bottom up. To avoid local dry burning, please add water at first, and then connect to power.

  3, Based on different powers, the user should ensure the minimum flow, while ensuring smooth water access to the pipe, to avoid vaporization and dry burning.

  4, Pay attention to the surface heat dissipation; and due to a big power density, please also pay attention to the rate of heat exchange.

  Product application

  The series of Jieda GIDAPE® stainless steel thick-film heating tubes have been specially designed for fluid heating, and currently have been successfully applied to fast heat water dispenser, fast heat water heater, electric heat faucet, pipeline machine, under sink water heater, coffee machines, circulate-heating, industrial equipment heating etc.


Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
