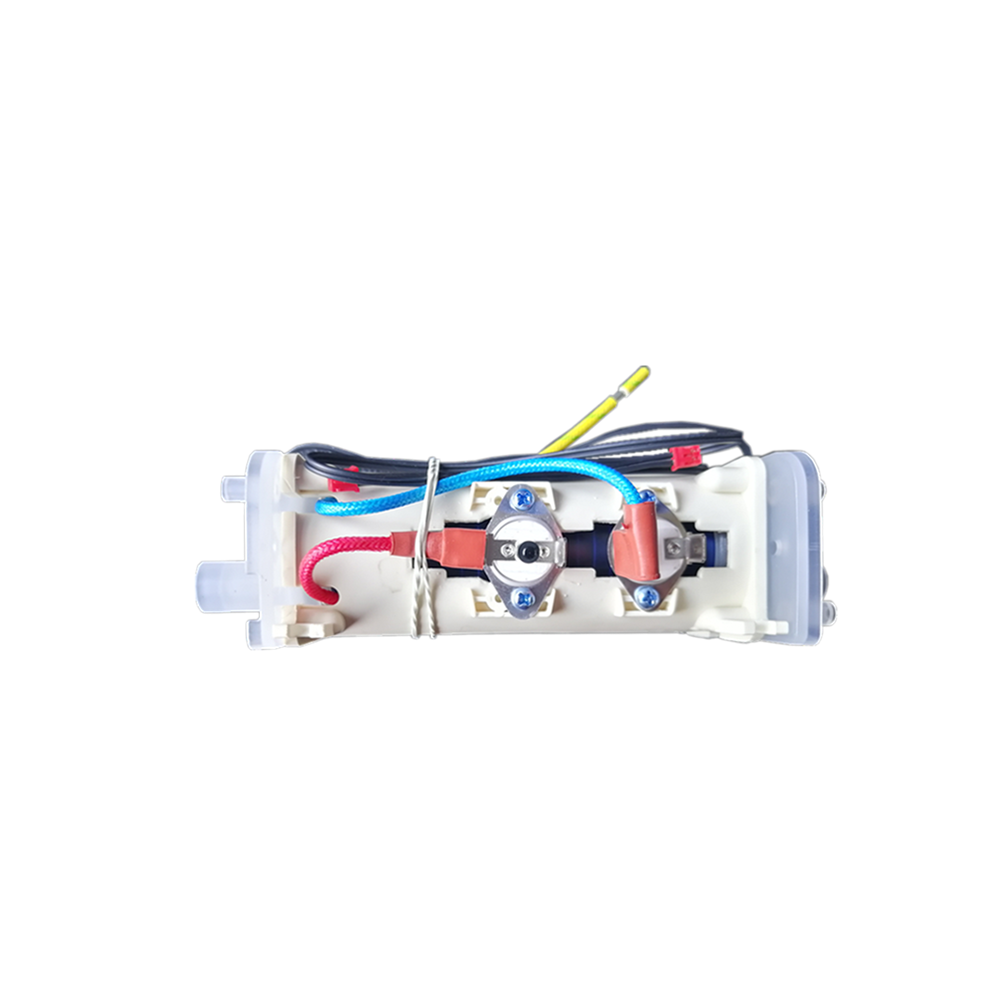

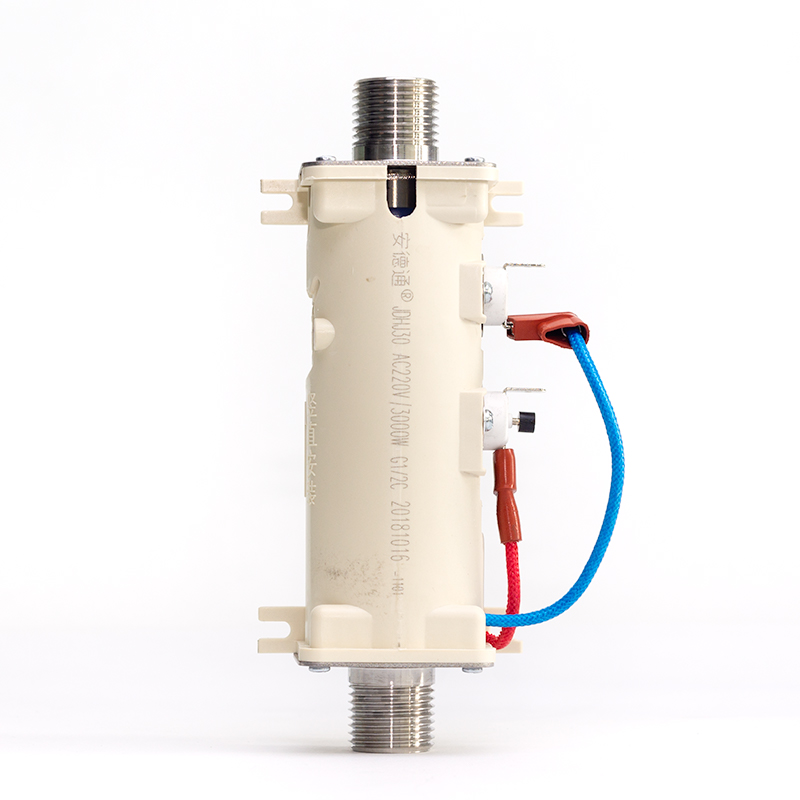

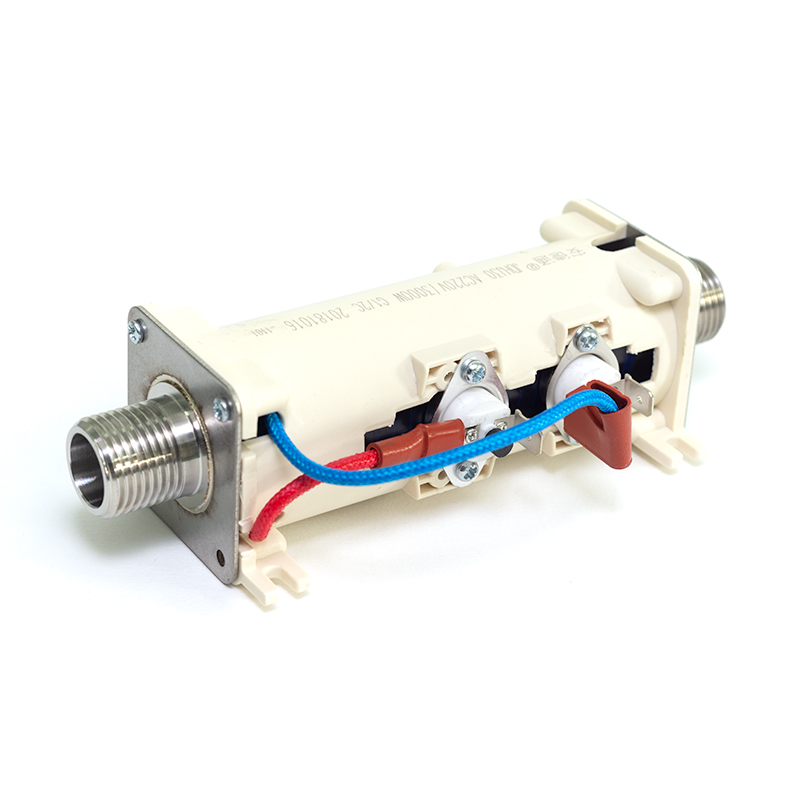

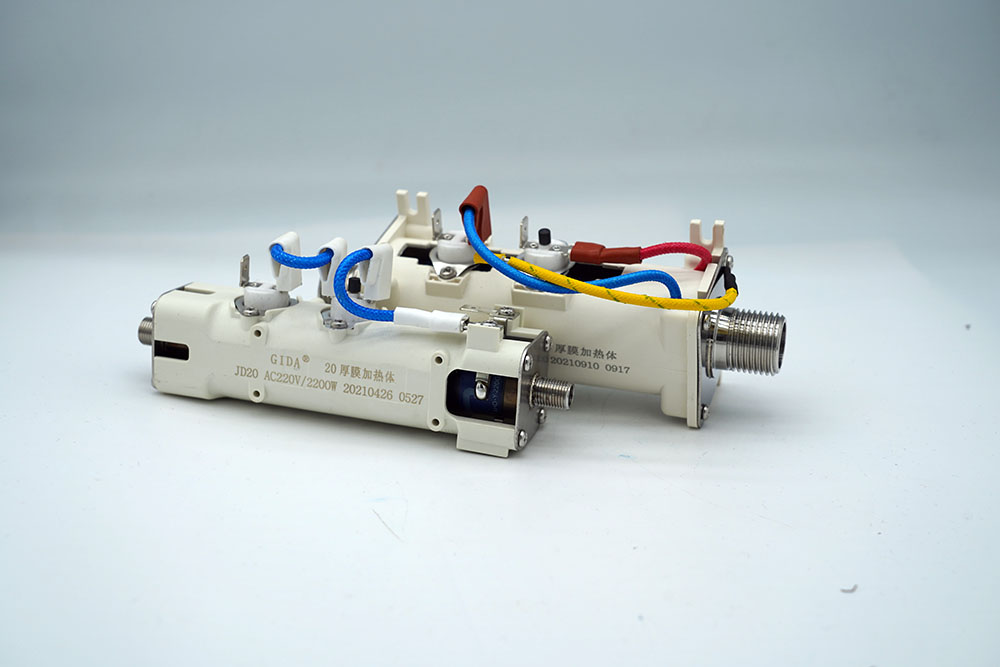

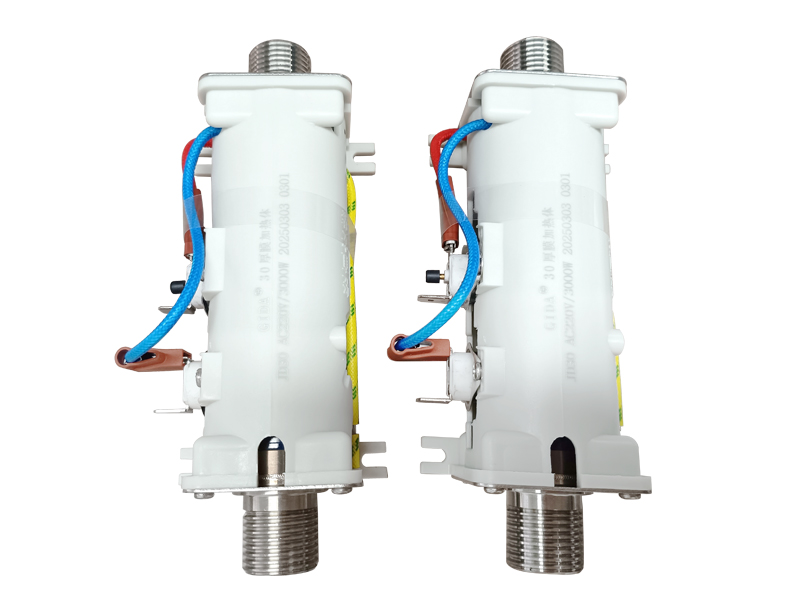

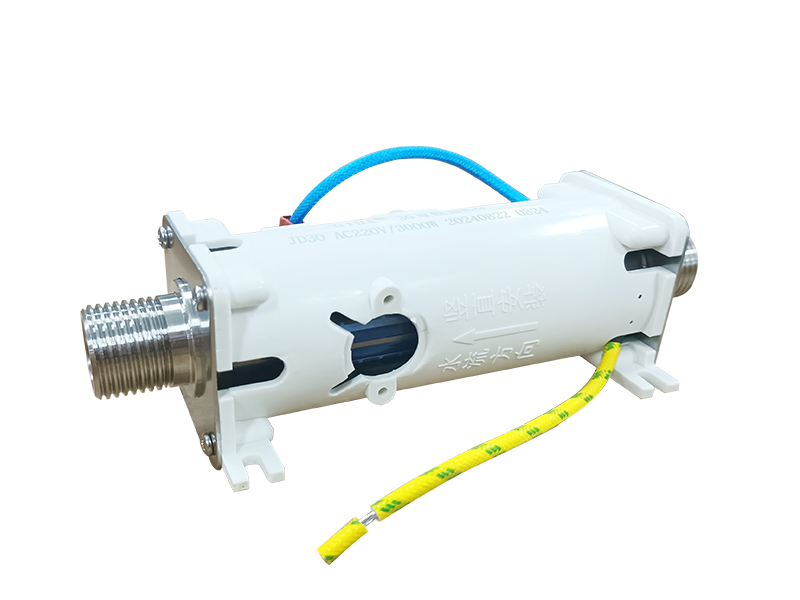

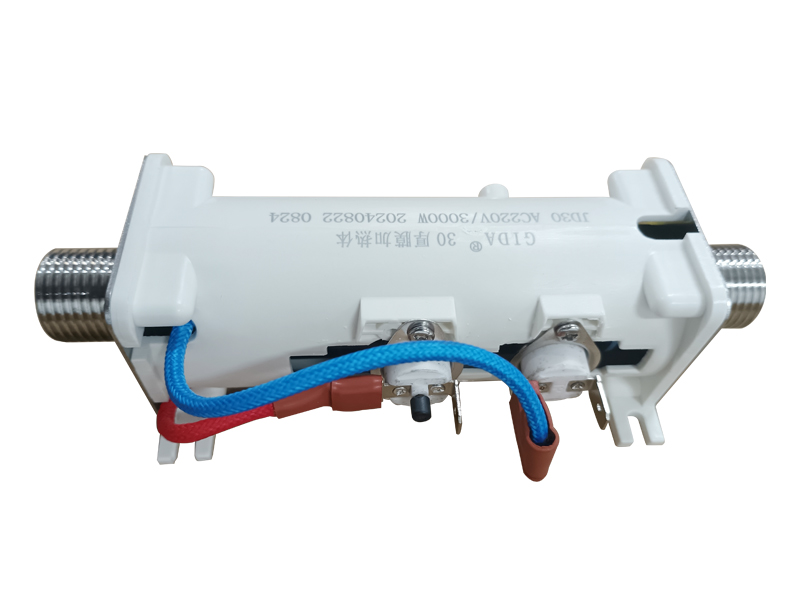

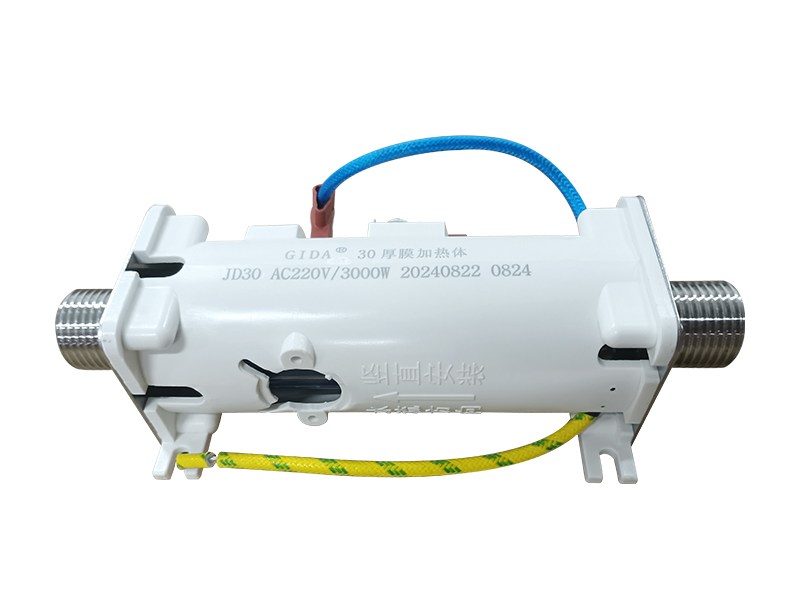

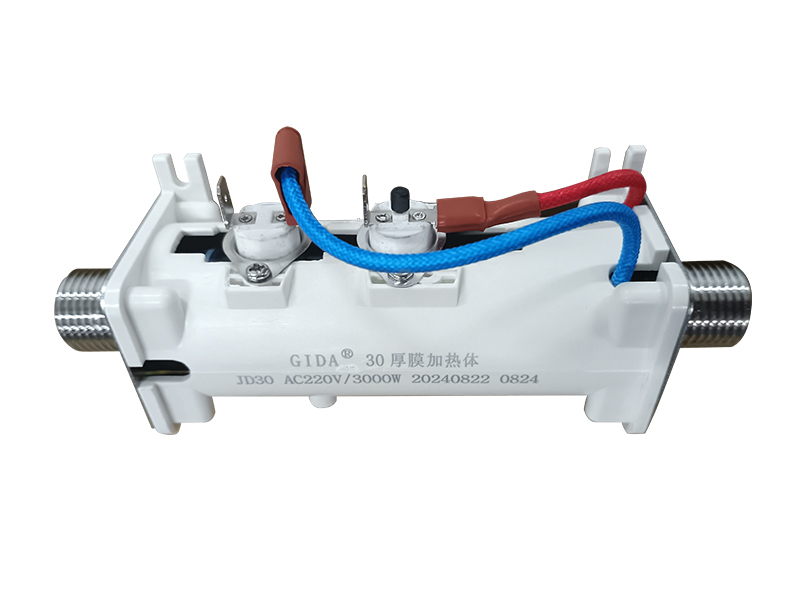

30BJ thick film heating element

30BJ thick film heating element

30BJ thick film heating element

30BJ thick film heating element

30BJ thick film heating element

30BJ thick film heating element

30BJ thick film heating element
Simple structure - small size with large power Fluid heating - tubular structure, fluid heating. Response speed ---power density 60W / c㎡,temperature rise speed ≥ 80 ℃ / s.
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

  Product features

  The main advantages are high heating efficiency,

  Fast thermal response,

  No thermal inertia

  Small volume

  Long service life.

  The main product is JD30(220V/3000W), 30HJ(220V/3000W), We can customize according to customer requirements;

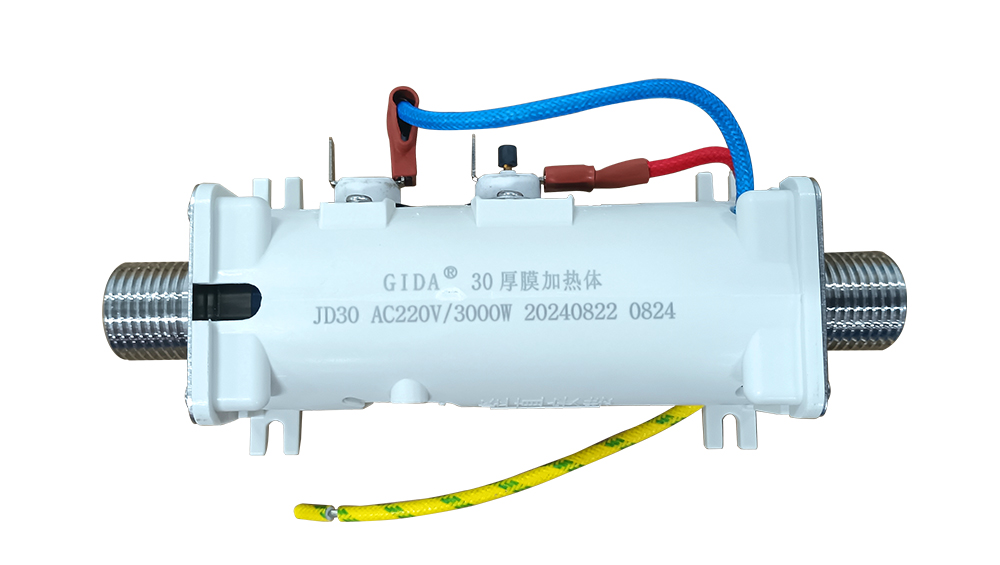

3000w heating element

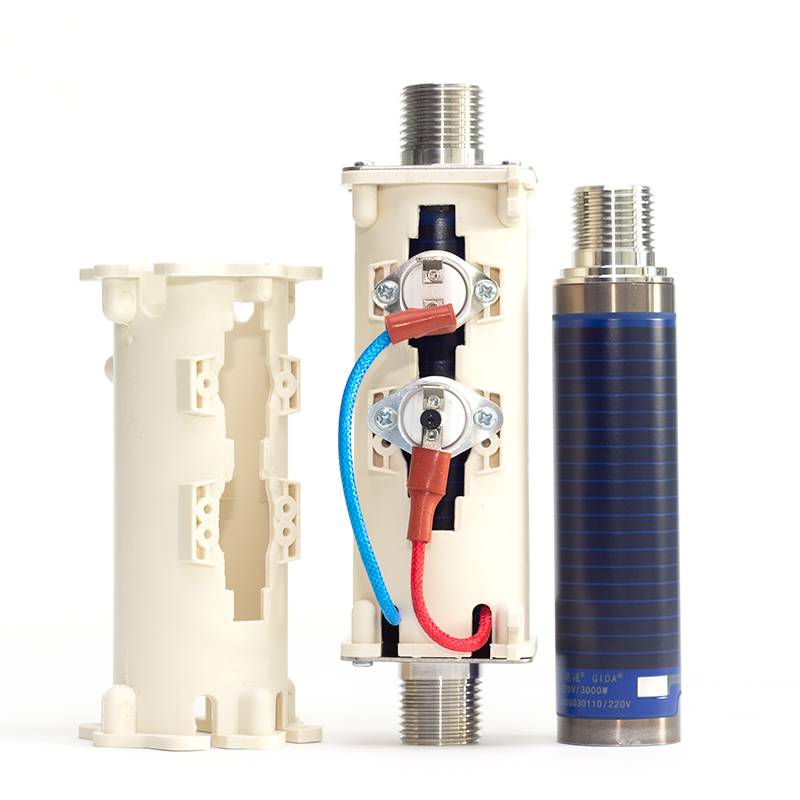

Product parameters

NO.

Product

Specification and model

1

30Thick Film Heating Tube

3000W/220V lower than 2200w can be customized,

2

Diversion Column

Food-grade silicone

3

NTC sensor

R25°C=50KΩ±1%,B25/50°C=3950K

4

Snap Disc Thermostat

Automatic

5

Snap Disc Thermostat

Manual

6

Cap

Food-grade PP/φ13.5/ SUS304 G1/2 Thread

7

Protective Shield

PA6+25%GF/white/flame-retarded

large power heater

NO.

Item

Performance Requirements

1

Rated Voltage

AC220V 50Hz

2

Maximum current

16A

3

Rated Power

3000W(-10%,+5%)

4

Cold Resistance (25°C)

13.83~17.12Ω

6

Electric Strength

AC1500V/5mA/3s, no breaks or flash

7

Current Leakage

On 1.15 times of rated power, leakage 0.25mA

8

Air Tightness

0.2MPa air pressure, air inlet 4S, balance test 20S, detection 4S, test result: leakage <200 Pa

9

Overload capacity

Maximum overload voltage 264v

10

Service Life

Temperature of the tube surface<280°C, life ≥6000h

11

Power Density

53W/cm²

12

Thermal Efficiency

≥97%

13

Thermal reaction time

1s

14

Temperature rise rate

6s

15

Outlet temperature stability

±0.5℃

16

The heater Size

159*64*46mm

17

Inlet and outlet dimensions

Φ13.5mm/G1/2

instant heating element for boiling heater

  Product use precautions

  1 It is forbidden to disassemble or replace parts without authorization, otherwise it will cause functional failure.

  2 Heating instantly, please be sure to supply water before power on to avoid dry heating.

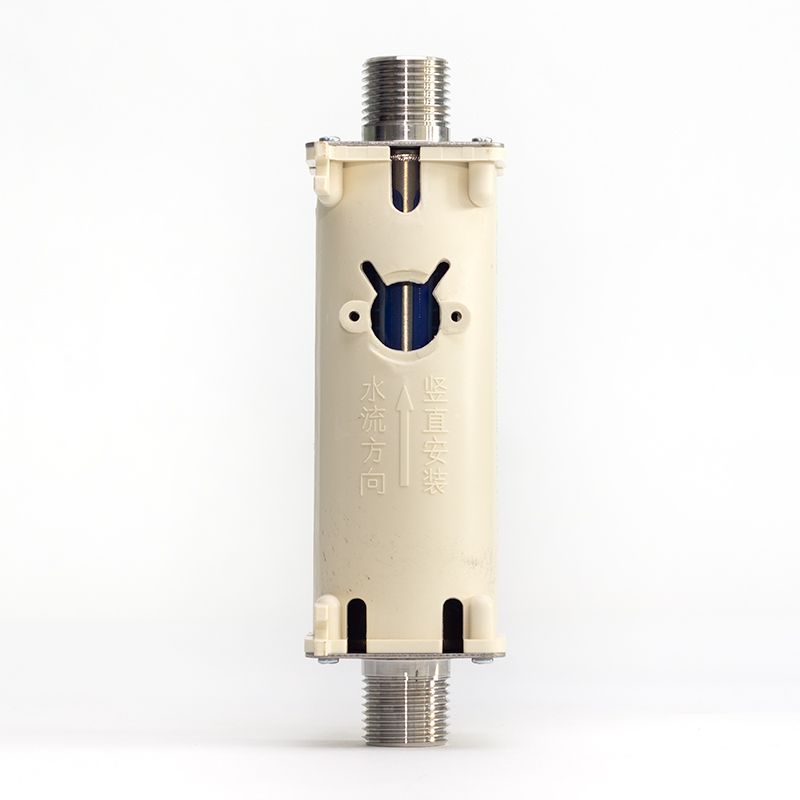

  3 Placed vertically and the direction of water flow should be from bottom to top.

  4 The product must be reliably grounded.

  Product application

  Thick film heater is mainly used for fast heating. It is applied to the products of instant water heater, H2 water dispenser, commercial instant heating equipment


Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
