XinXiang Gida Precision Electric Co.LTD

Steam heater

10 years of industry experience to help enterprises grow

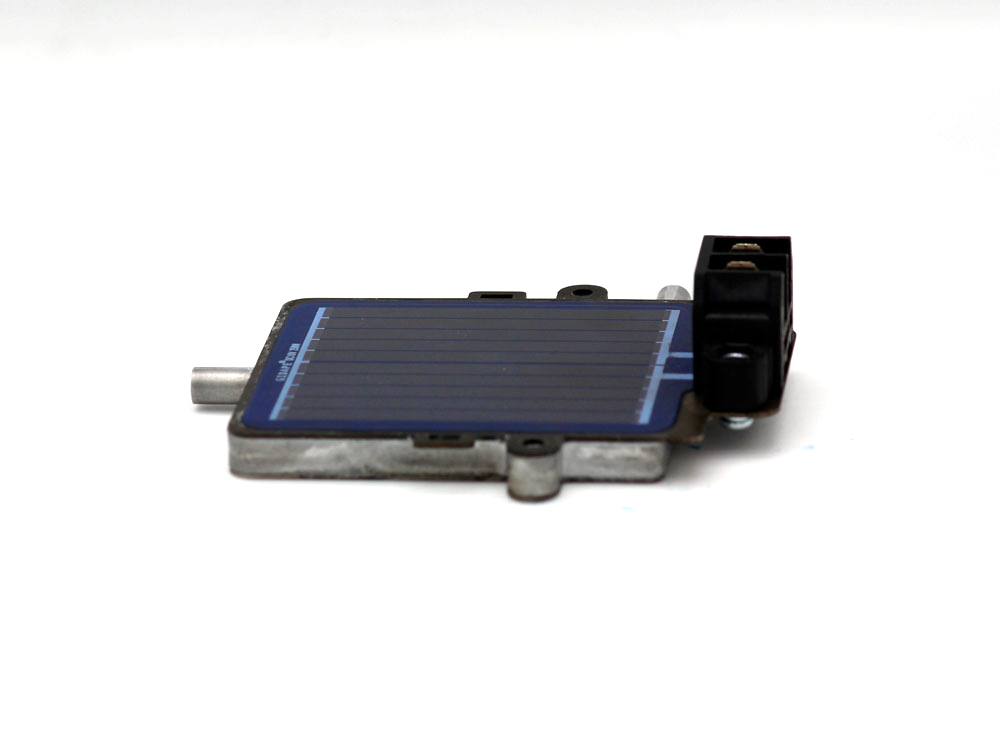

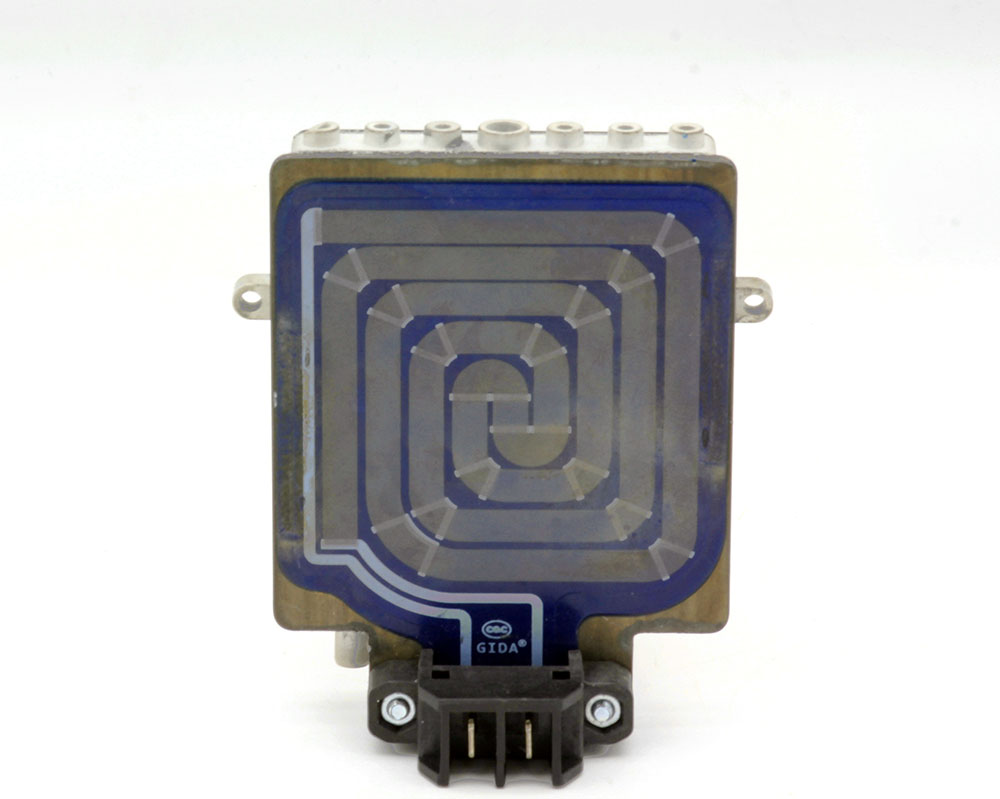

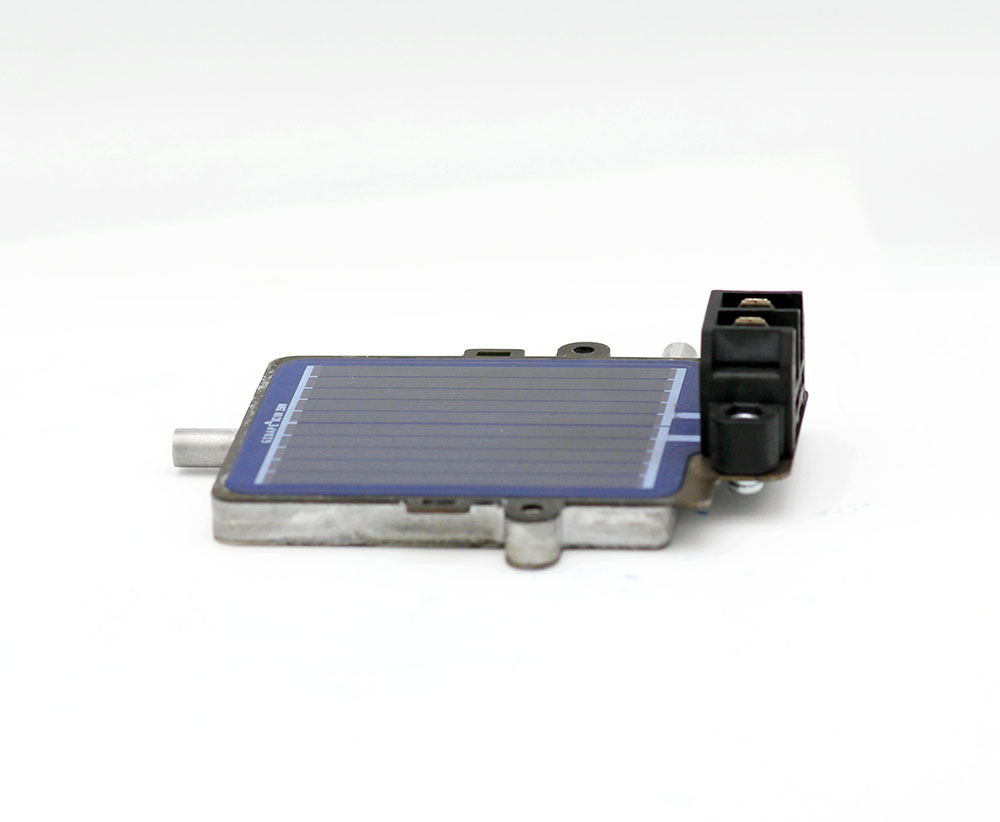

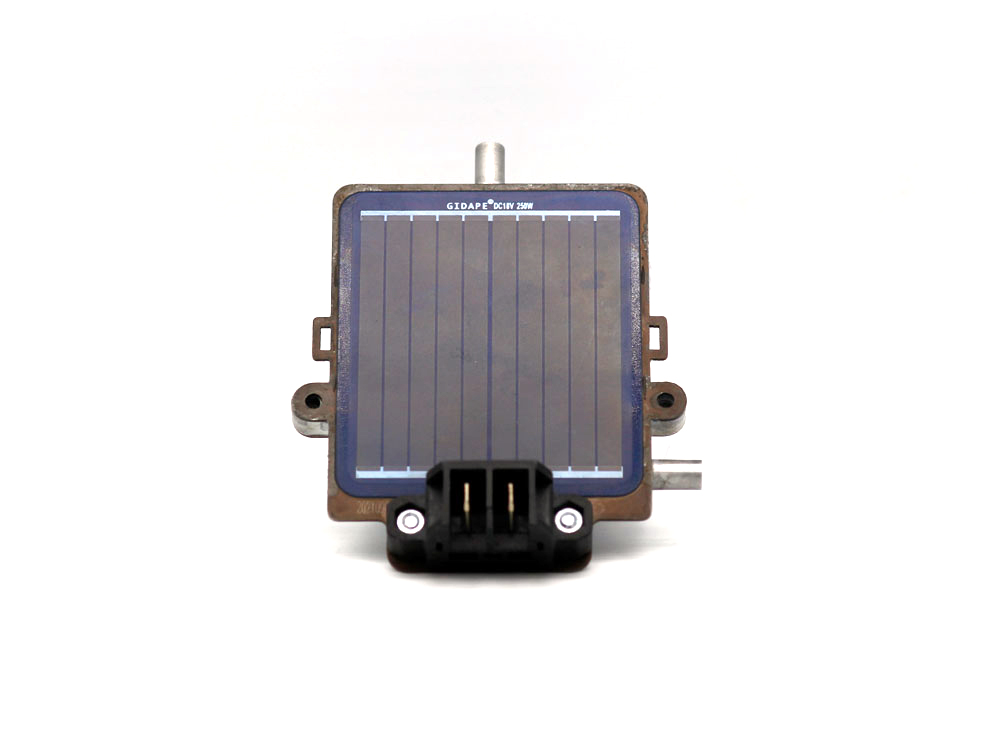

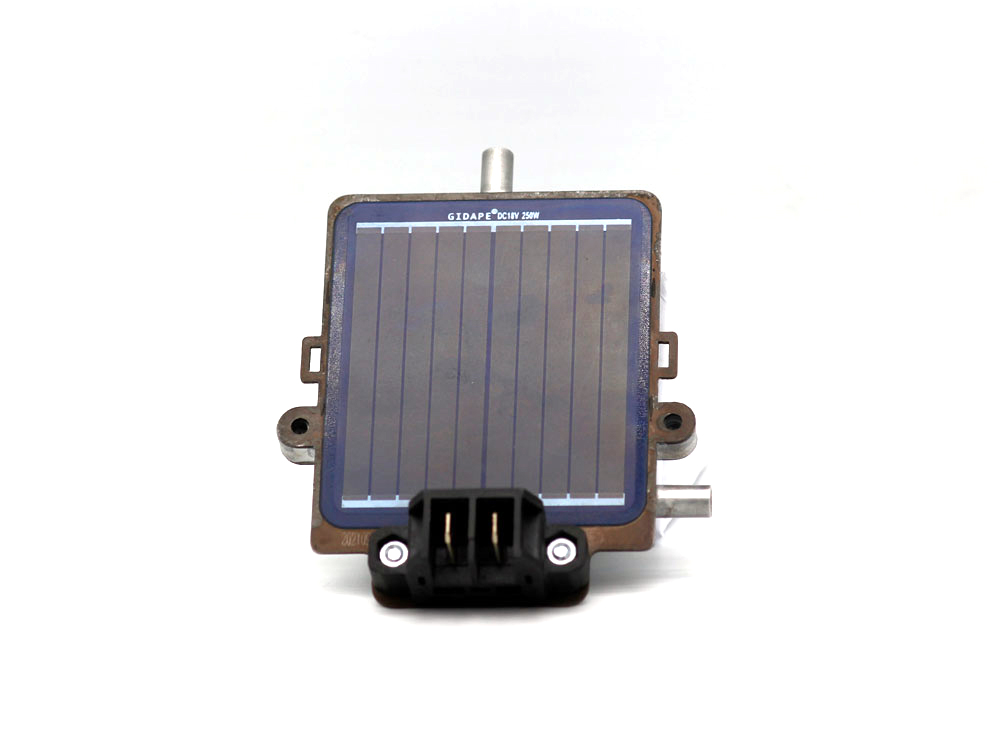

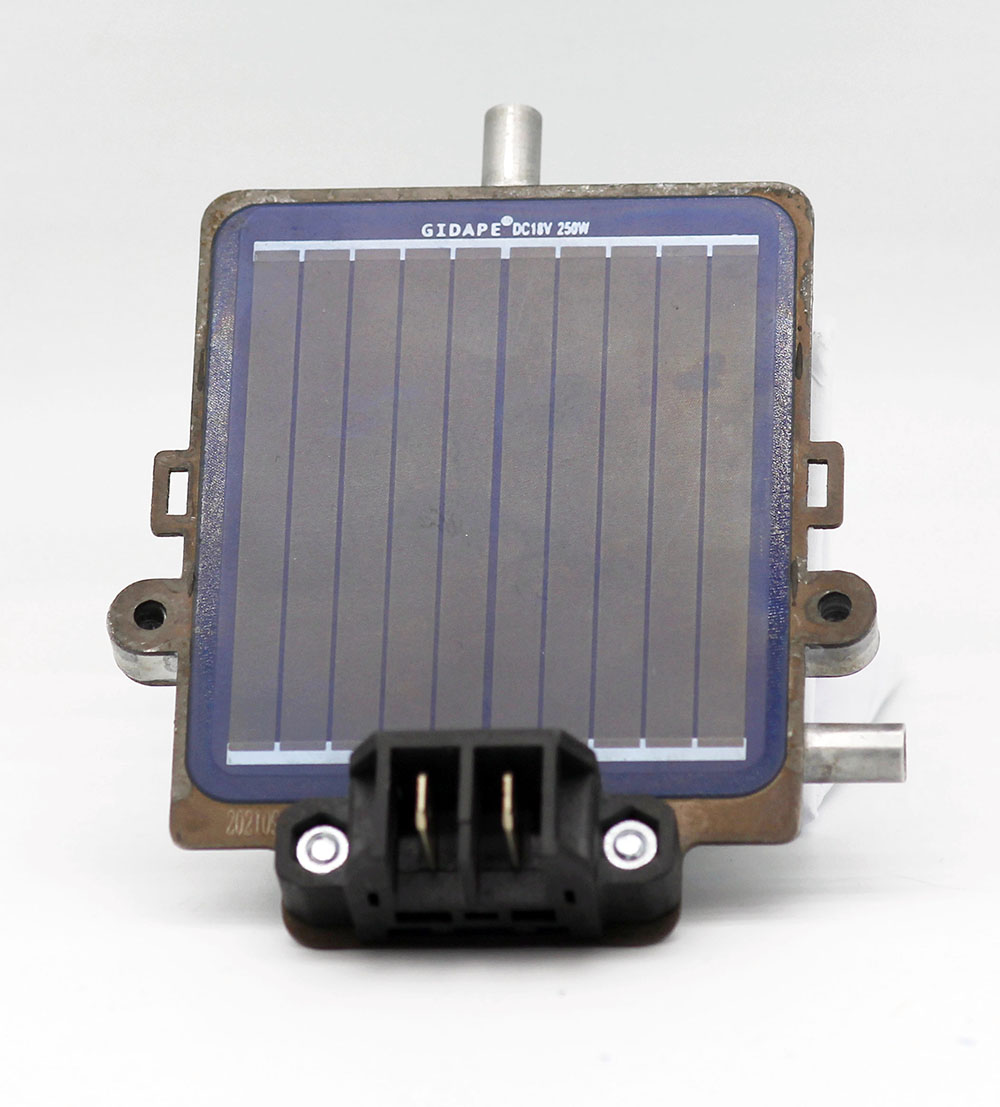

Thick film steam heater

Thick film steam heater

Thick film steam heater

Thick film steam heater

Thick film steam heater
Hand-held hanging ironing machine, ironing machine, vertical hanging ironing machine, steam mop, sweeping robot.
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

  Product features: smart size, small heat capacity low temperature brazing technology, good sealing.Al 1066 pure aluminum water passage.

  Product advantage: short preheating time, fast generation steam, big steam volume

thick film steam heater (4).JPG

  Product introduction: innovative low temperature brazing technology, combine aluminum flow passage and heating plate seamless, no leaking water, no deformation.Air outlet temperature up to 150 degrees.Steam capacity up to 28g/min (at 1200W power condition)

thick film steam heater (6).JPG

num

Items

Parameters

1

Rated voltage

AC220V  50Hz

2

Max current

16A

3

Rated power

1200W-10%+5%

4

Resistance

29.19~35.18Ω

6

Electric strength

AC1500V/5mA/3sno breaks or flash

7

Current leakage

On 1.15 times of rated power, leakage 0.25mA

8

Steam pressure

0.8MPa

9

Overload capacity

Maximum overload voltage 264V

10

Service life

Temperature of the tube surface<300°C, life time ≥6000h

11

Power density

55W/cm²

12

Thermal efficiency

≥96%

13

Preheat time

10s

14

Max steam temperature

Maximum temperature 150℃

15

Steam volume

28g/min120℃

  Customized: Standard power 1500W, voltage and power can be customized according to regional requirements

thick film steam heater (5).JPG

Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
