Small size with high power 2100w/220v Getting hot water in 1S Stable water temperature on outlet ±1℃ tolerance Safety protection, detection and monitoring, fault alarm, triple dry burning protection Stainless steel brazed flow channel, no risk
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

  Product characteristics

  To let customers intuitively feel the product performance advantages of thick film heater, GIDA designed this module product. Because GIDA has a better understanding of the product performance of thick film heater, it directly provides customers with integrated heating solutions, including hardware cooperation and software programs, which can effectively shorten the customer's new product development time and faster application of instant heating solutions.

  Small size high power

  Getting hot water in 1S

  Stable water temperature on outlet ±1℃ tolerance

  Safety protection, detection and monitoring, fault alarm, triple dry burning protection

  Constant temperature and quantitative effluent: meet the needs of drinking water at various temperatures in daily life. It is normal temperature water, 45 ℃ for milk and honey, 85 ℃ for tea and 95 ℃ for coffee.

  Stainless steel brazed flow channel, no risk of film explosion and no peculiar smell

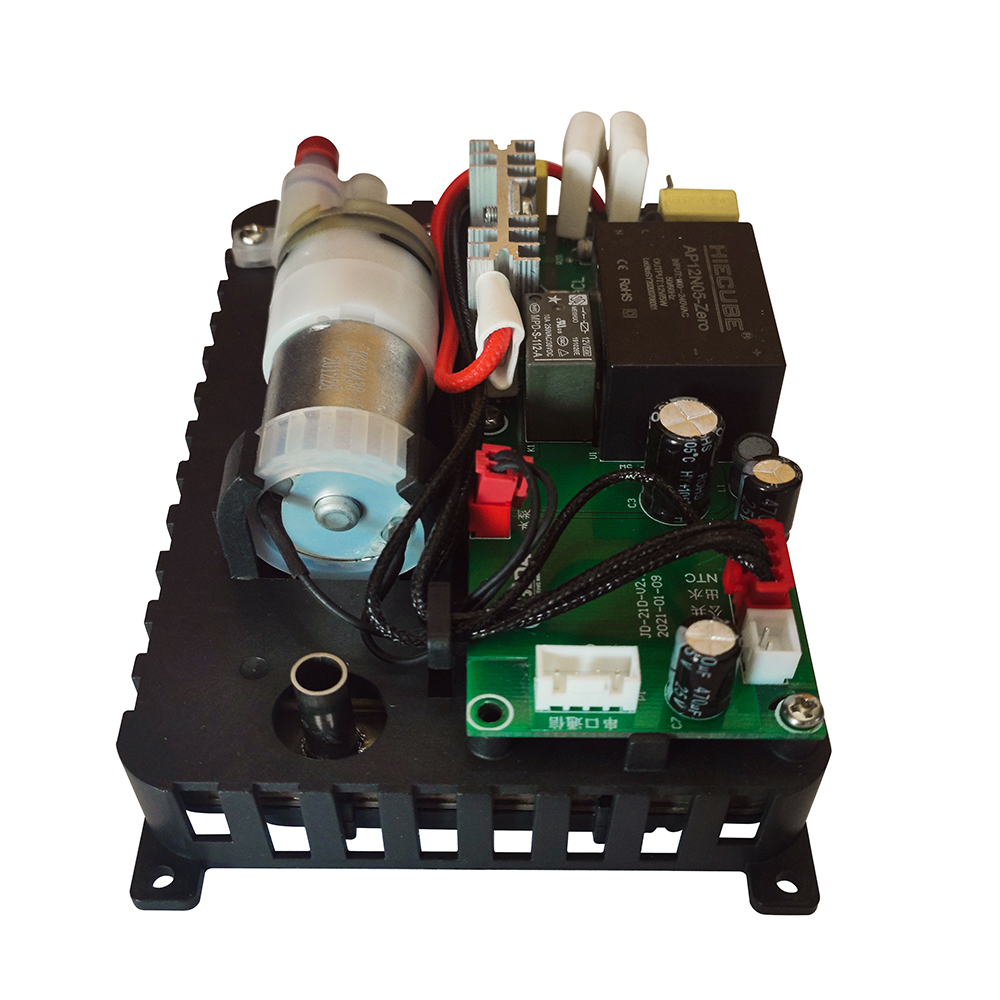

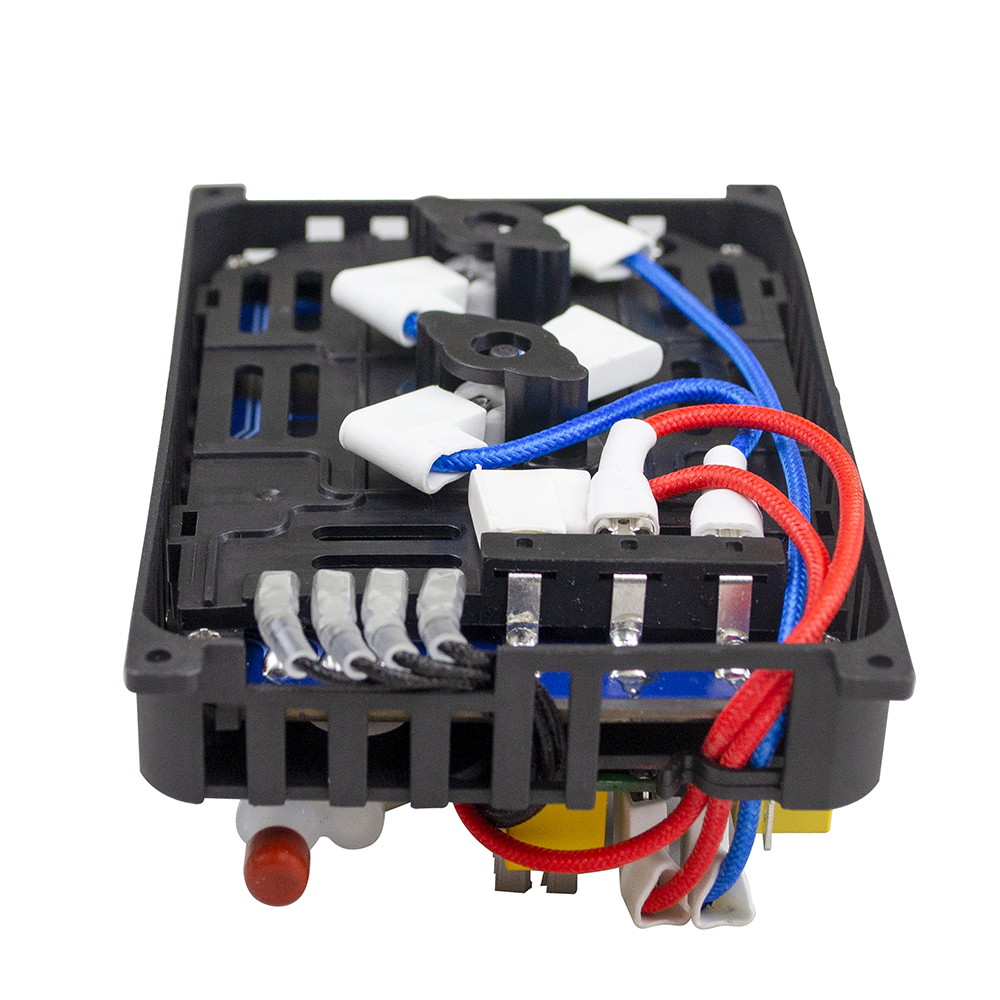

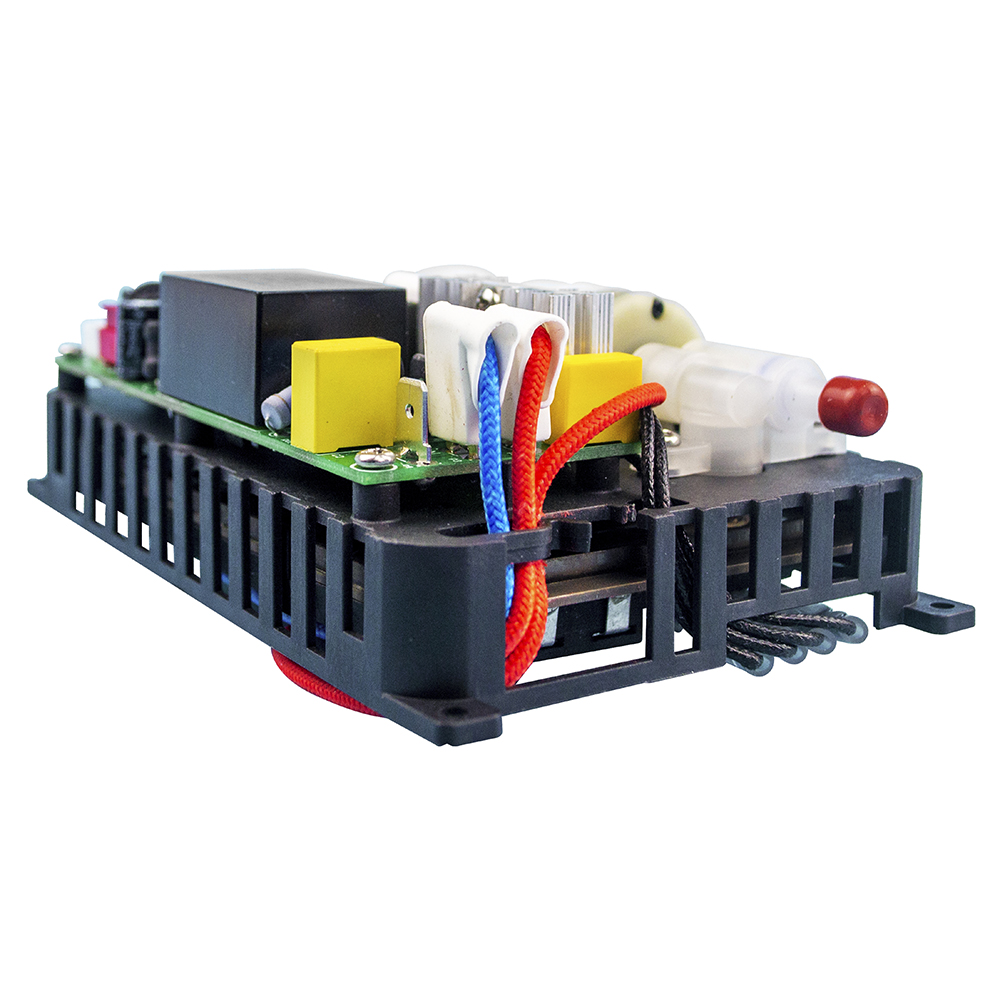

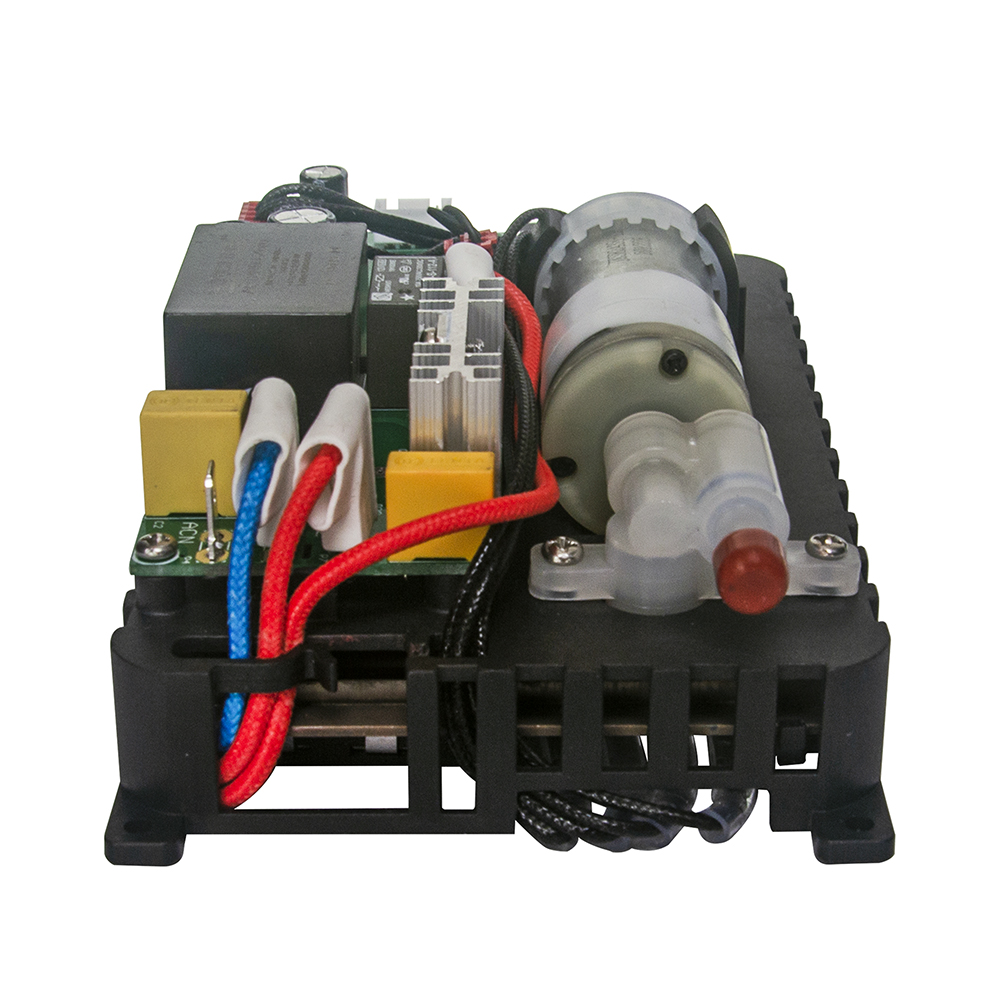

第五张 flat electric heating moudle

  Product configuration

No.

Part

Material/Specifications

1

Heating plate

2100w/220v

2

Water Pump

SC3711PW/12V

3

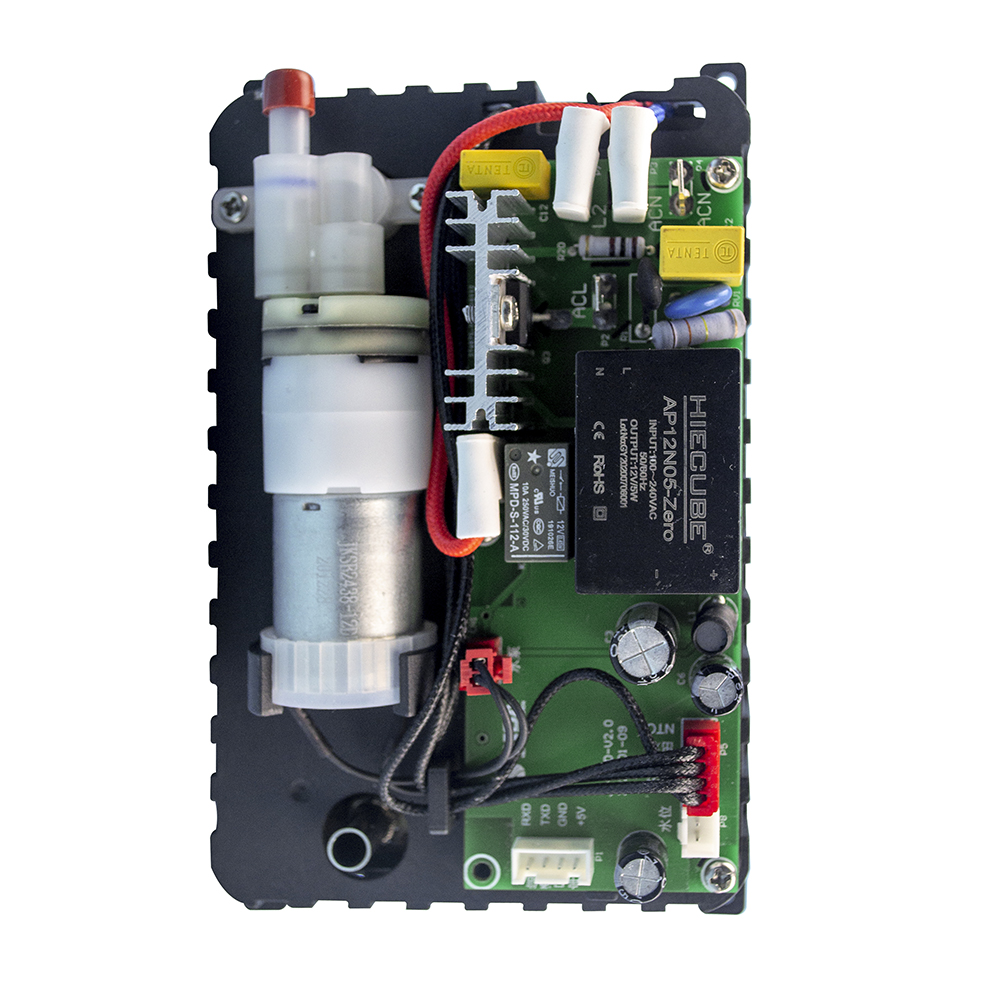

Control Panel

JD-20Control

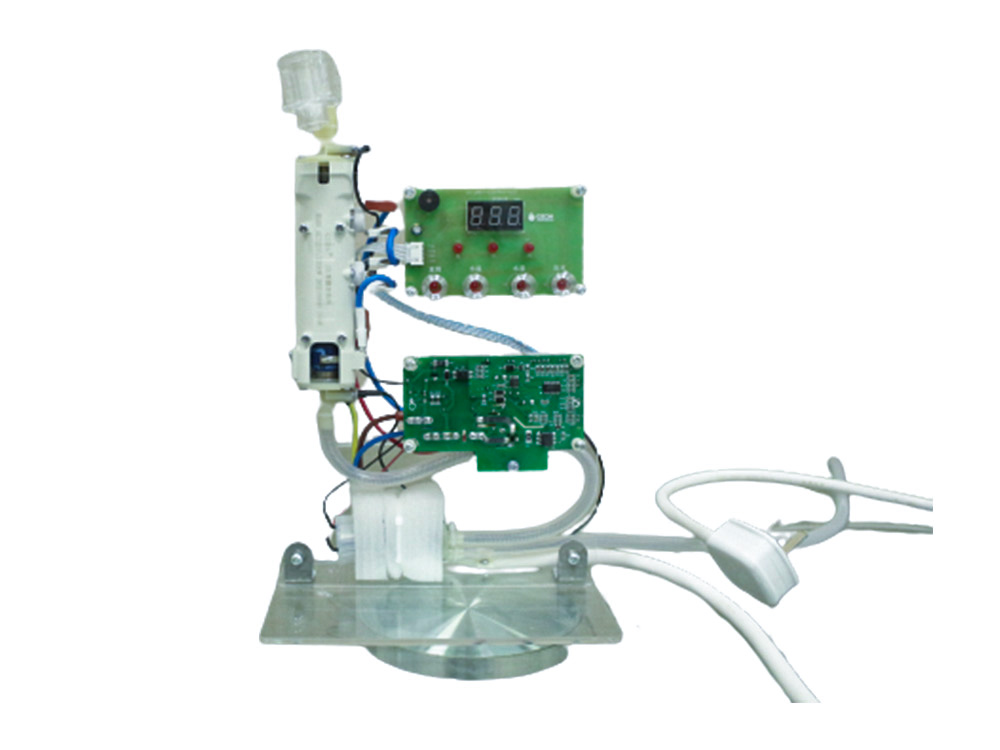

第四张 instant heating kits

Product Parameters

Basic Performance

Rated Voltage















S

AC220V

Rated Frequency

50Hz

Rated Power

2100W

Power Deviation

-10%, +5%

Rated water

Pressure

≤0.05MPa

Main Functions

Outlet Temperature and Outlet Volume Test

Outlet Temperature

Water Output

Outlet Temperature Deviation

Output Volume Deviation

Room temperature, 45°C100°C, every 5°C is a level

150ml,500ml,1000ml

±1°C

±10%

First Hot Water Time

3-6s

Refilling Time

1s

inlet water temperature detection, outlet water temperature detection, safety protection.

Safety protection function: water shortage protection, icing protection, over temperature protection, dry heating protection.

Remark: When the program is set to 100°C, the actual outlet temperature is 97°C. (The actual outlet temperature is adjustable).

第三张 target temperature heater

  Product Control Principle

  The test kit starts to work after setting the outlet temperature, the electric control board provides a certain power to the heating body according to the set temperature, the temperature detected by the outlet temperature sensor and the inlet water temperature sensor, a speed signal is given to the water pump, then two temperature sensors adjust the speed of the pump in time (adjust the flow rate) though received temperature signal to achieve real-time adjustment of the outlet temperature

  Product application

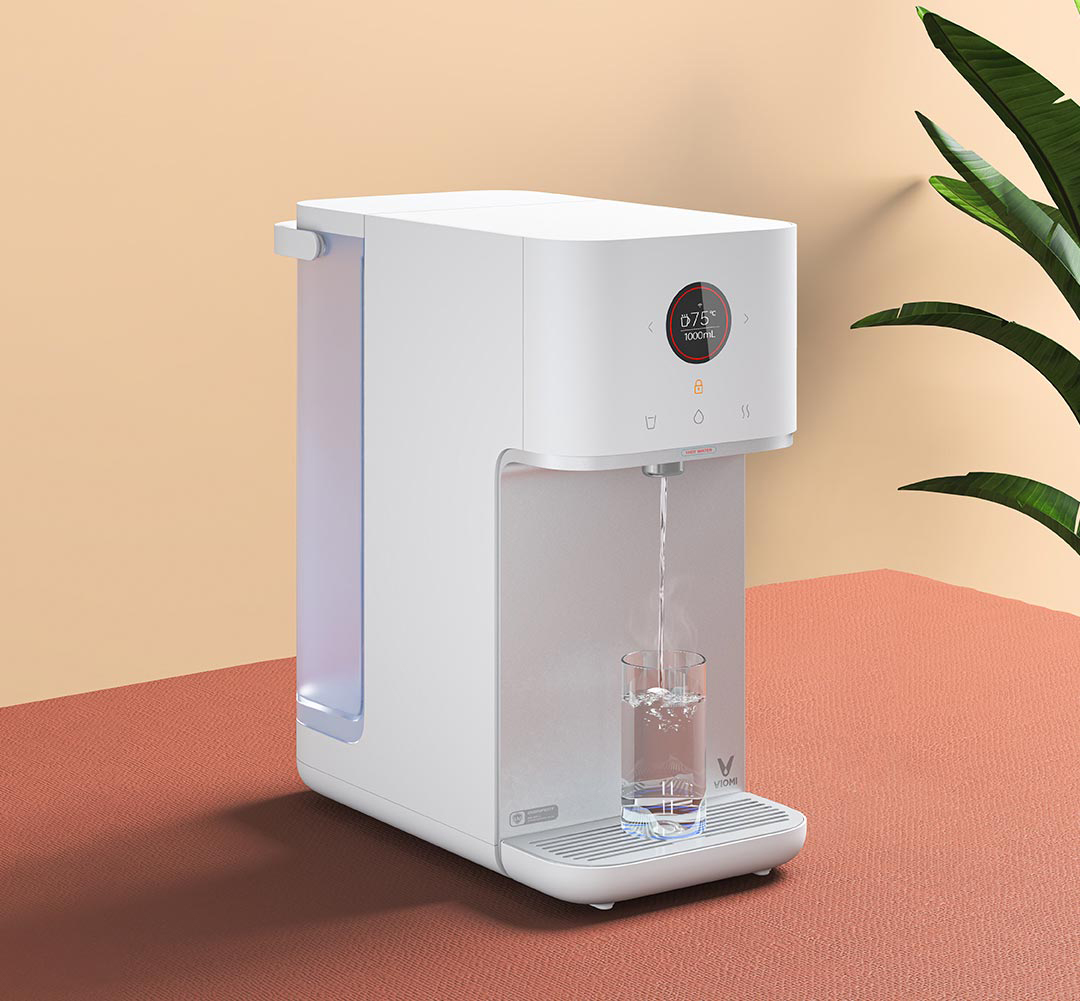

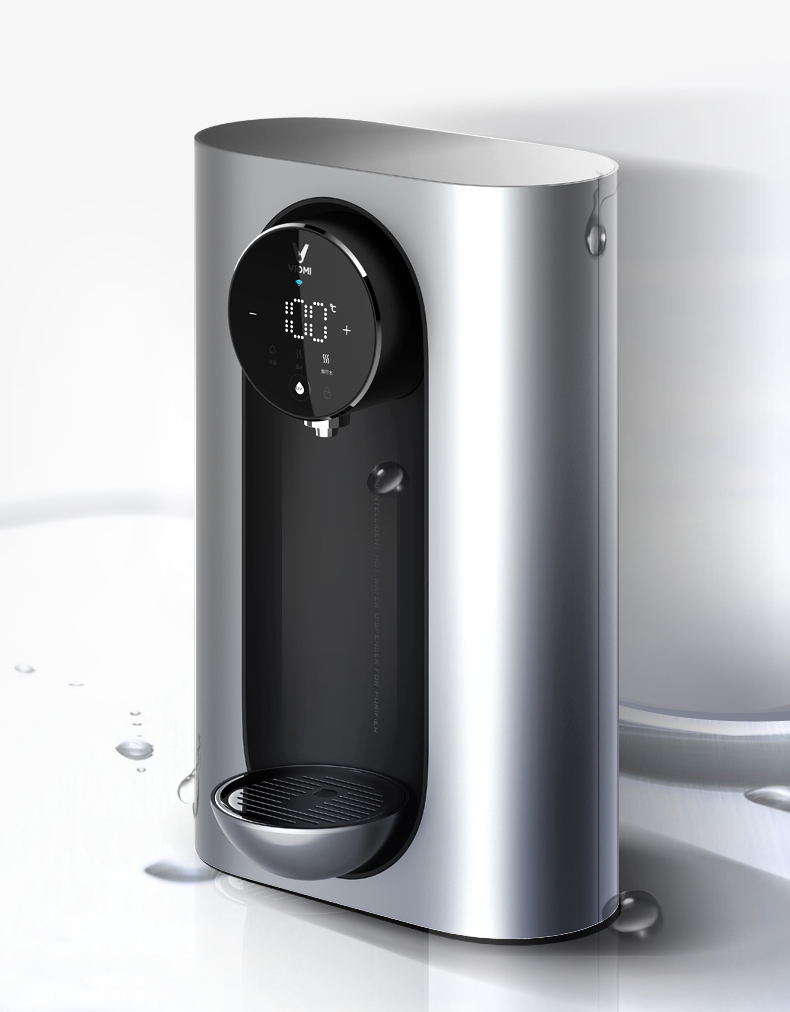

  Table-top hot water purifier, table-top water dispenser, under-sink water purifier, wall mounted hot and cold pipeline machine, drip coffee machine.
