Steam heater

10 years of industry experience to help enterprises grow

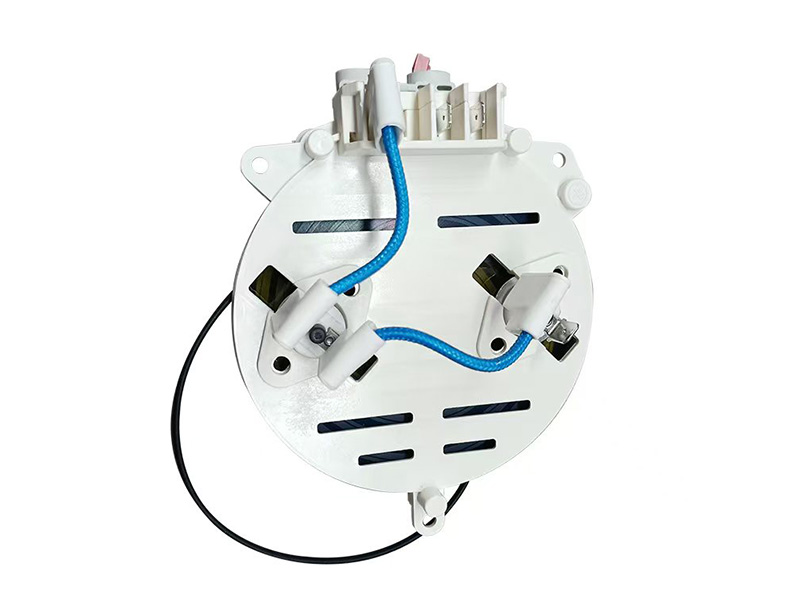

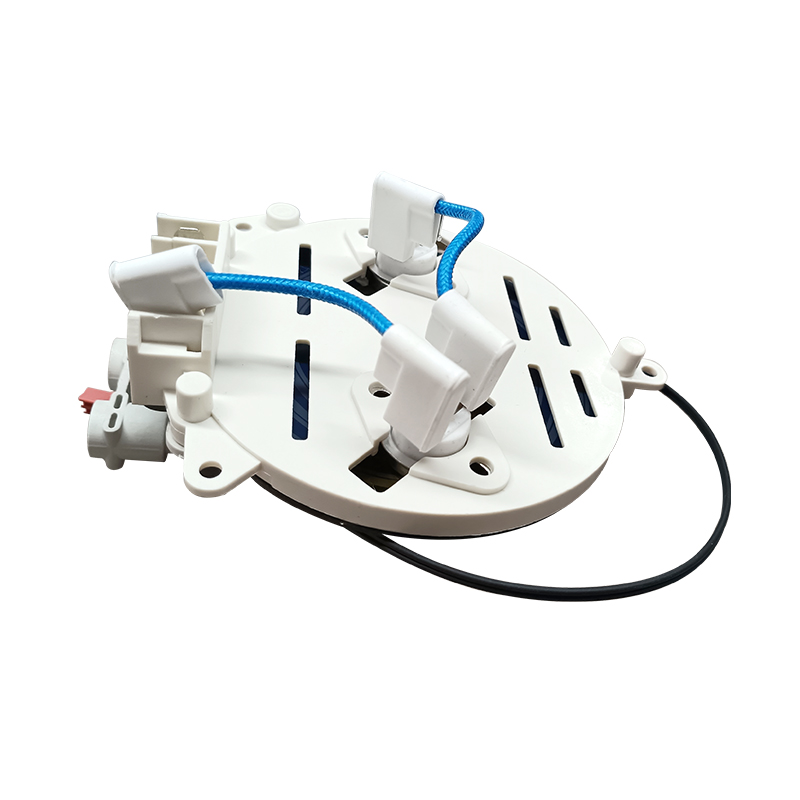

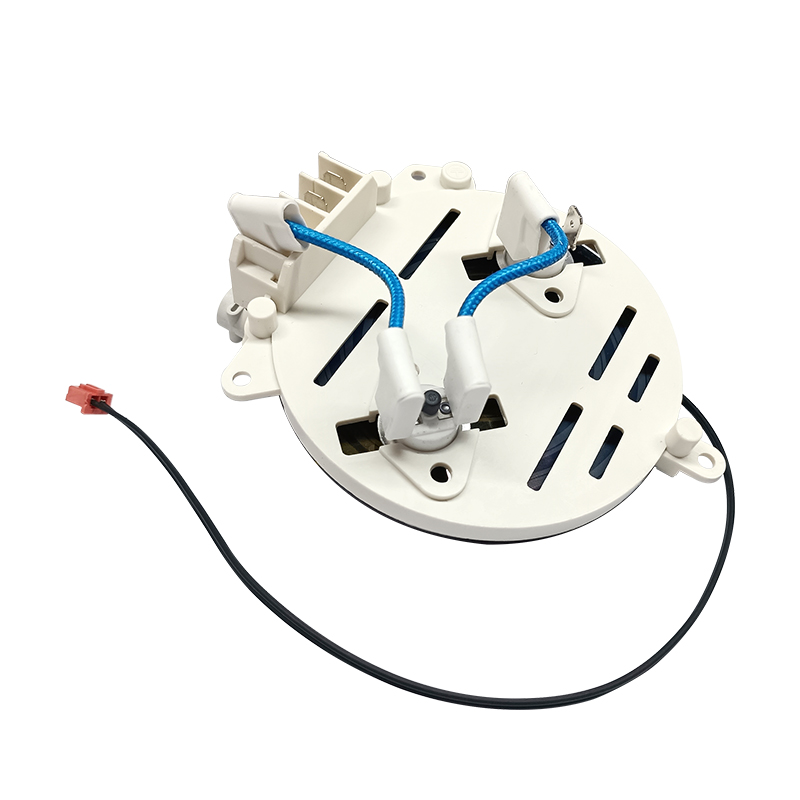

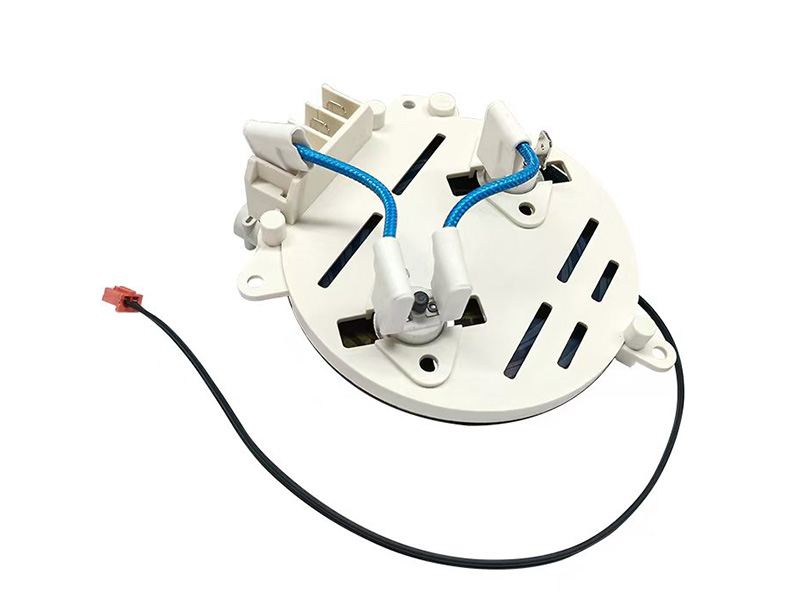

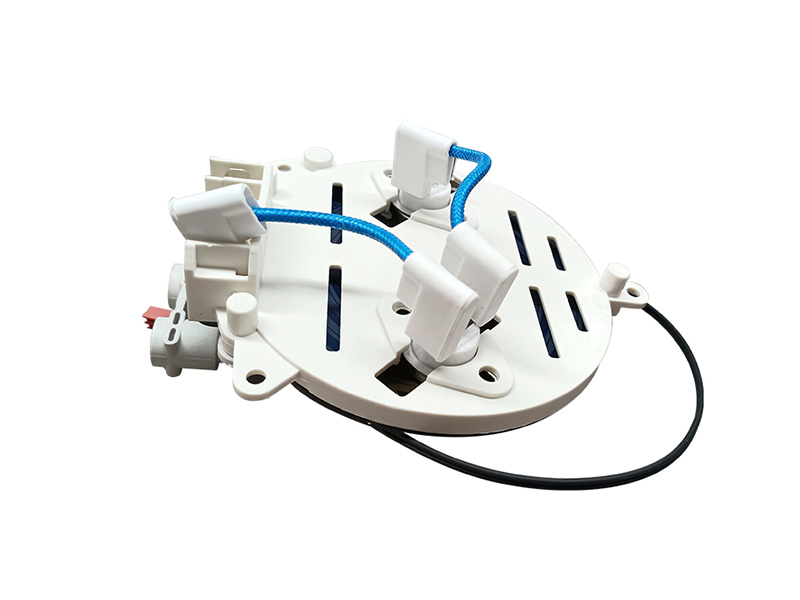

Thick film heater for coffee machine

Thick film heater for coffee machine

Thick film heater for coffee machine

Thick film heater for coffee machine

Thick film heater for coffee machine

Thick film heater for coffee machine
drip coffee machine, grinding coffee machine, capsule coffee machine, instant hot water dispenser, instant hot water purifier, steaming box
Reasonable price
Good quality
Complete variety

24-hour hotline

0086-13523737235

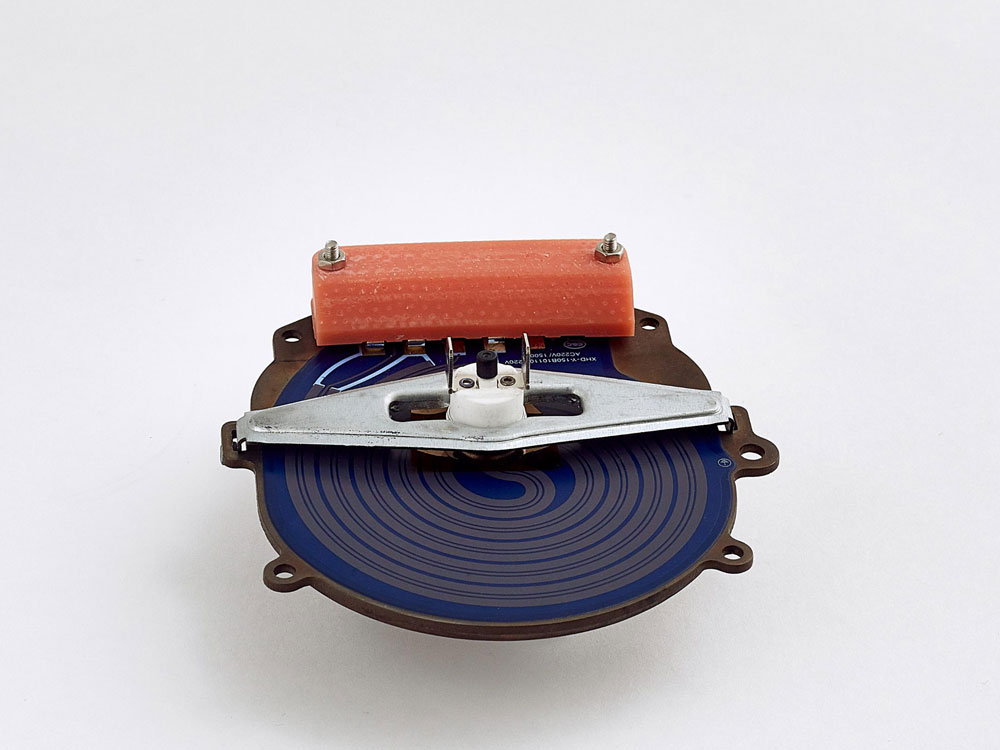

  Features: smart size, small heat capacity, hot water and steam heater , brazing process

  Advantages: small size, space saving, good sealing, short preheating time, large steam volume, high steam temperature

微信图片_20220114092417

  Description:

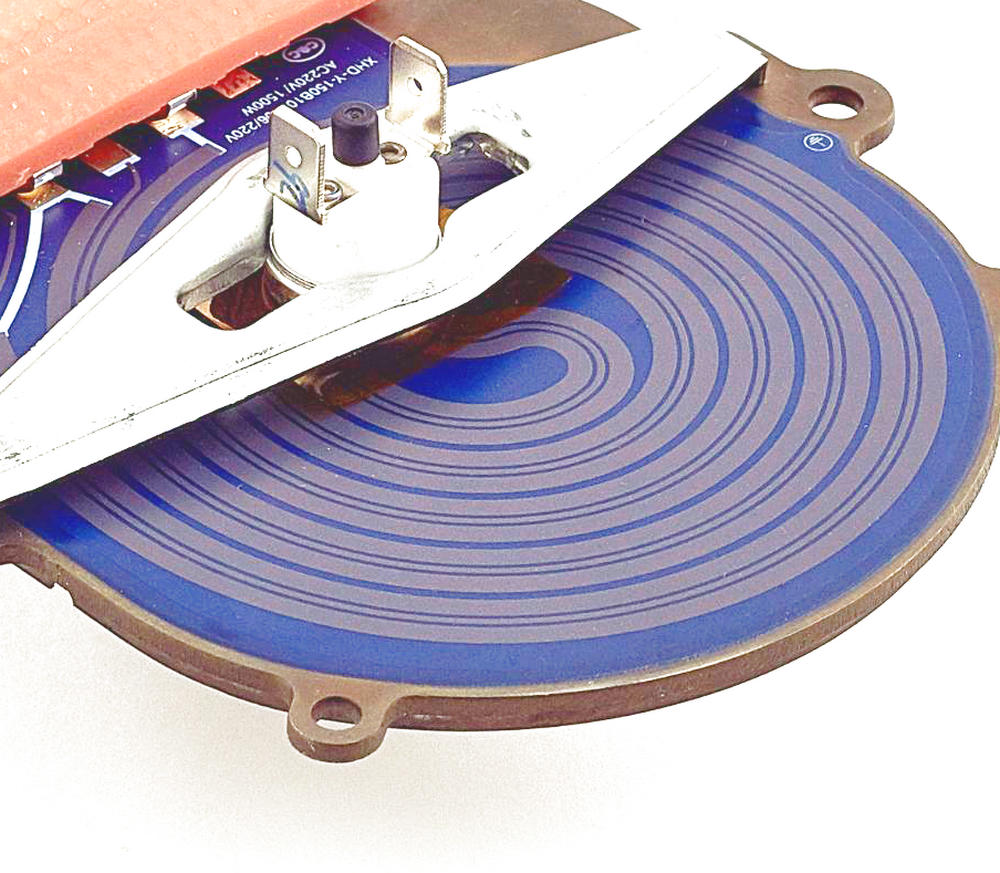

  Rare earth thick film heating, transfer electric energy into heat energy, high heating efficiency, few heat loss, Generating both high temperature steam and hot water. Can used for make milk foam, suitable for domestic coffee machine and commercial coffee machine.

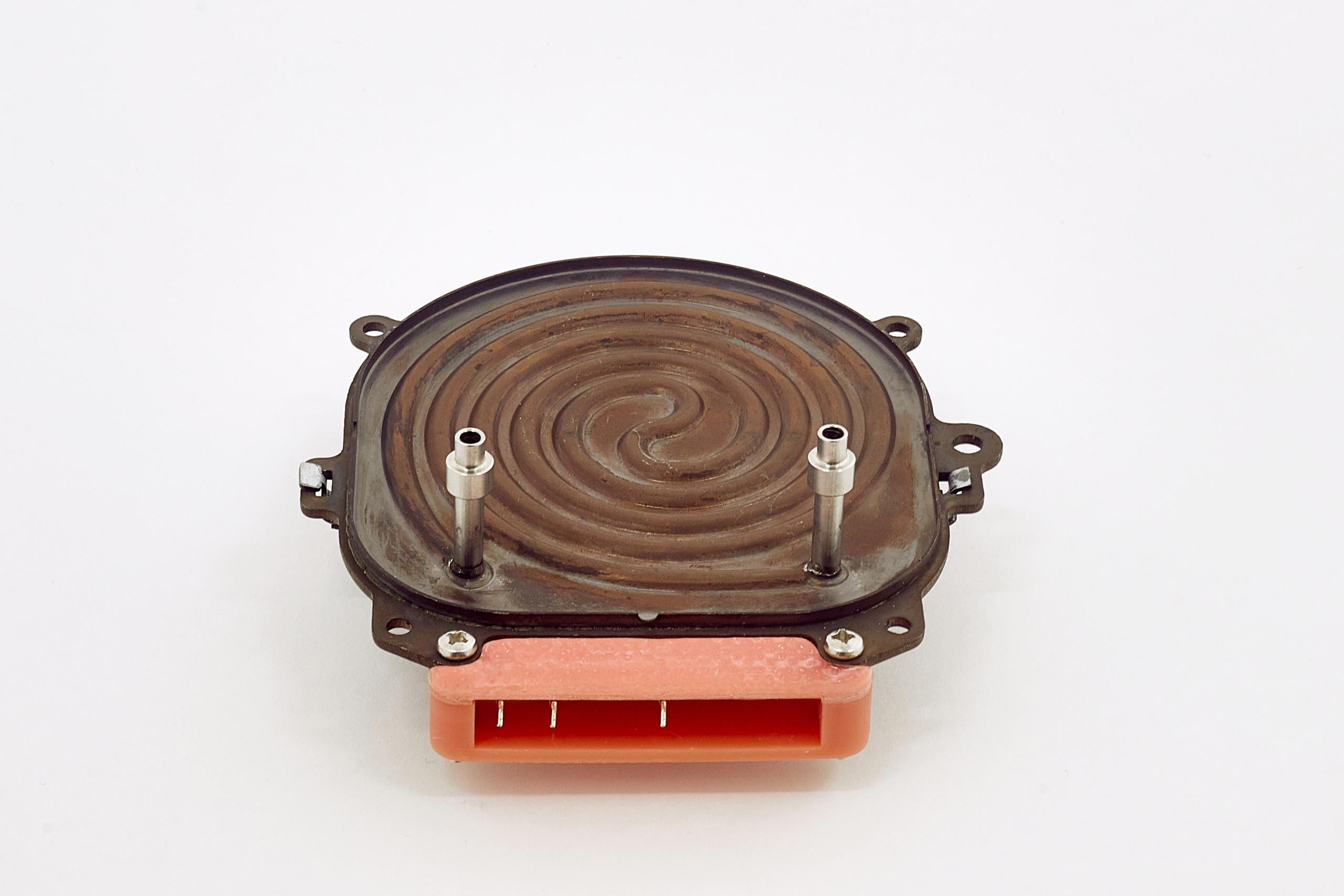

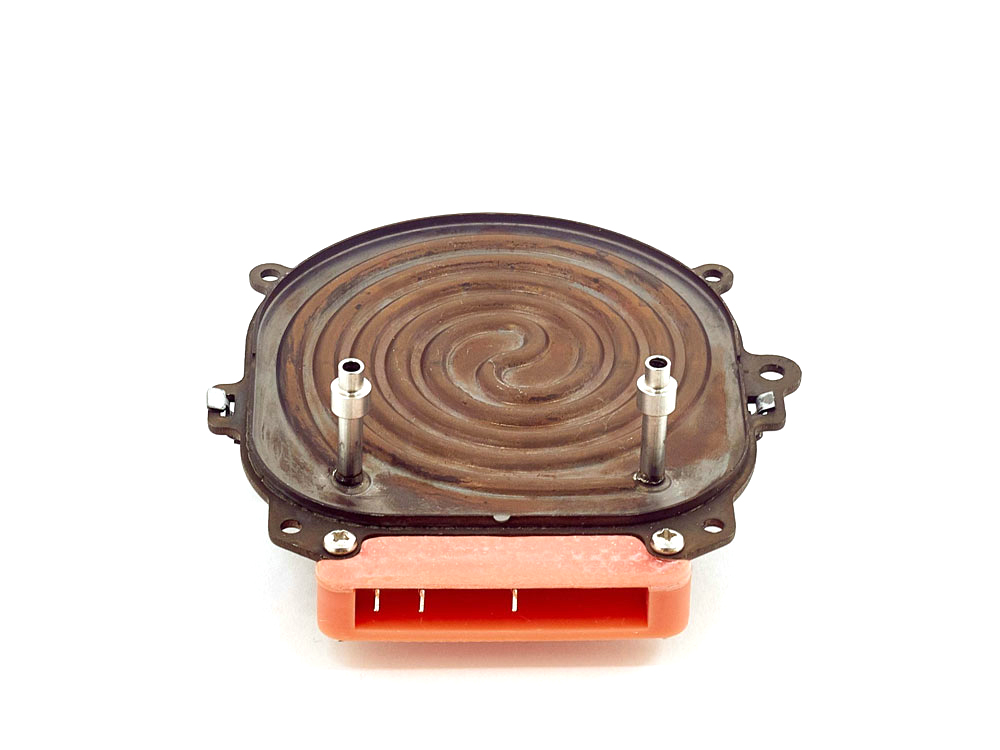

  1. Circular plate, brazing flow passage, avoid leaking water, good sealing.

  2. Instant heating, small heat capacity, short preheating time, 3 seconds preheating, fast steam.

  3.Perfect function, can produce hot water and steam, high temperature 95℃ water output per minute up to 350ml, steam output per minute 36g.

  4. High power density, fully and equally heating , more than 3000 hours product life.

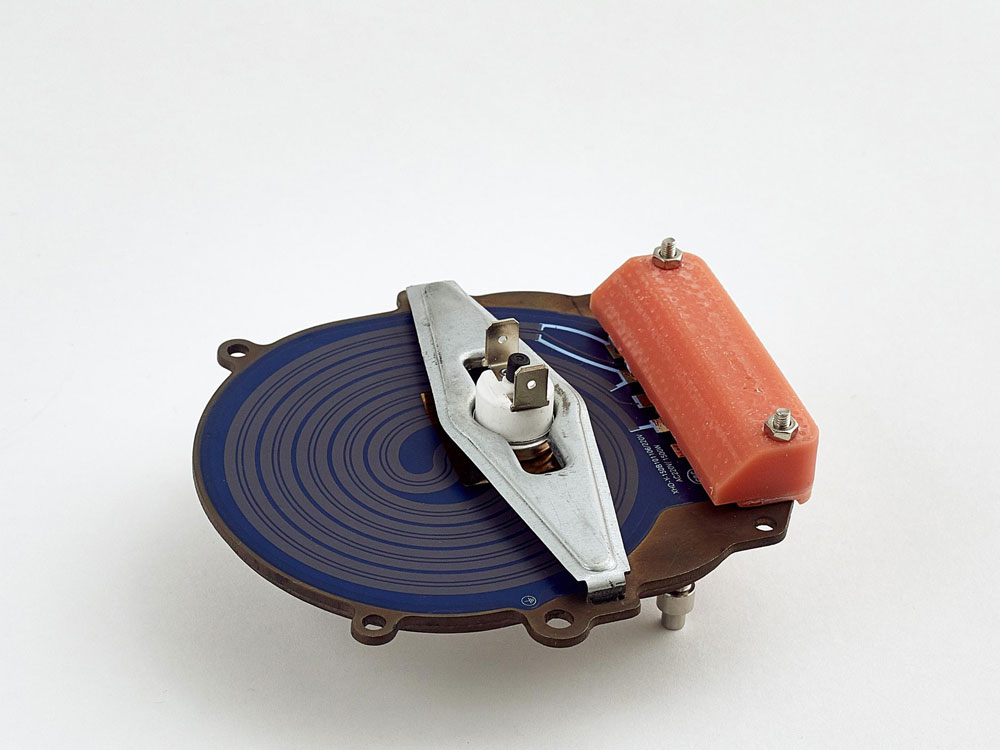

thick film heater for coffee maker (8)

Parameters:

No.

Items

Parameters

1

Rated voltage

AC220V  50Hz

2

Max current

16A

3

Rated power

1500W-10%+5%

4

Resistance

23.3529.76Ω

6

Electric strength

AC1500V/5mA/3sno breaks or flash

7

Current leakage

On 1.15 times of rated power, leakage 0.25mA

8

Maximum bearing pressure

2MPa

9

Overload capacity

Maximum overload voltage 264V

10

Service life

Temperature of the tube surface<300°C, life time 6000h

11

Power density

58W/cm²

12

Thermal efficiency

≥97%

13

Outlet water flow

330g/min95℃

14

Preheat time

3S

15

Max steam temperature

Maximum temperature 160℃

16

Steam volume

36g/min120℃

17

Steam pressure

5 Bar(Max)

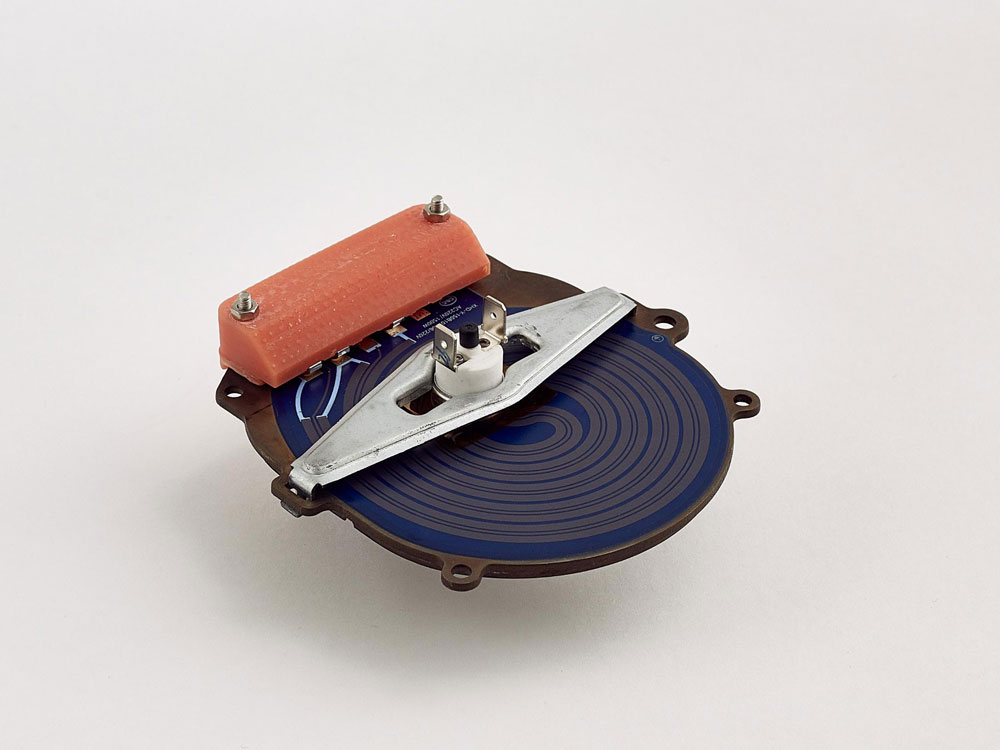

thick film heater for coffee maker (1)

  Customized: Standard power 1500W, voltage and power can be customized according to regional requirements

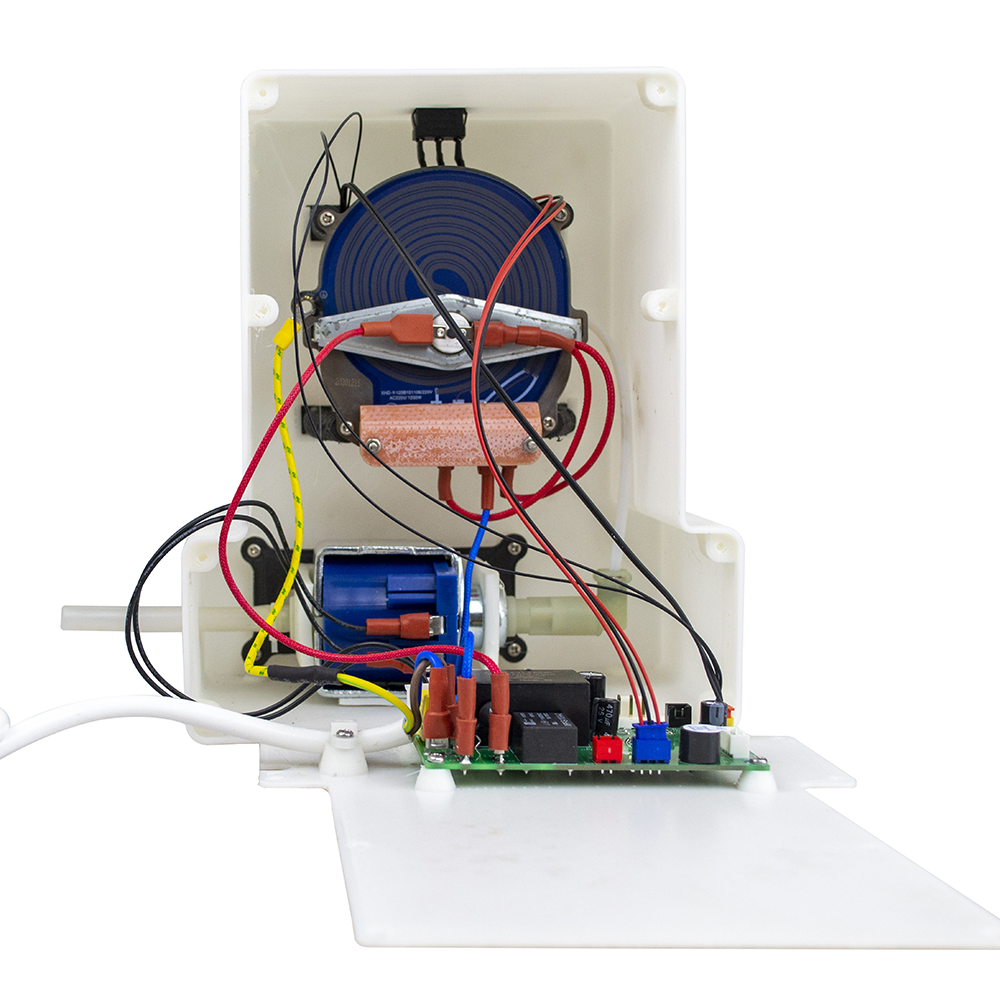

Customer application

application area

  • Household Appliances
  • Industrial fluid heating
  • Fluid pipe insulation
  • HVAC engineering
  • Medical care
  • National defense industry
